FCI-INGAAS-3000-20

Active

OSI Optoelectronics, Inc.

SENSOR PHOTODIODE 1550NM 3MM TO5

Search across all available documentation for this part.

Active

OSI Optoelectronics, Inc.

SENSOR PHOTODIODE 1550NM 3MM TO5

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Package / Case	Responsivity @ nm [custom]	Responsivity @ nm [custom]	Spectral Range [Min]	Spectral Range [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Wavelength	Active Area
OSI Optoelectronics, Inc. FCI-INGAAS-3000-20	Through Hole	Lens Top Metal Can TO-5 Variant	3 Lead	0.95 A/W	0.9 A/W	900 nm	1700 nm	2 V	-40 °C	75 ░C	1550 nm	3 mm²
OSI Optoelectronics, Inc. FCI-INGAAS-1500	Through Hole	TO-46-3 Lens Top Metal Can		0.95 A/W	0.9 A/W	900 nm	1700 nm	2 V	-40 °C	75 ░C	1550 nm	1.5 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 216.57

General part information

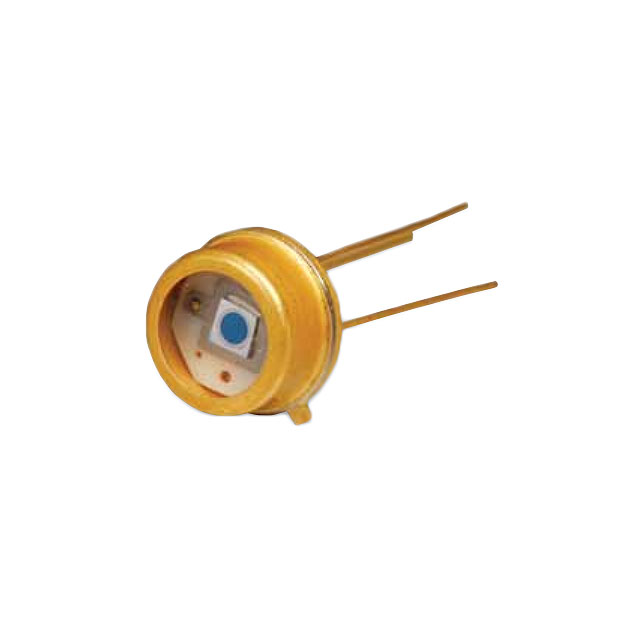

Photodiode 1550nm TO-5 Variant, 3 Leads, Lens Top Metal Can
