JB15FPG05

Active

NKK Switches

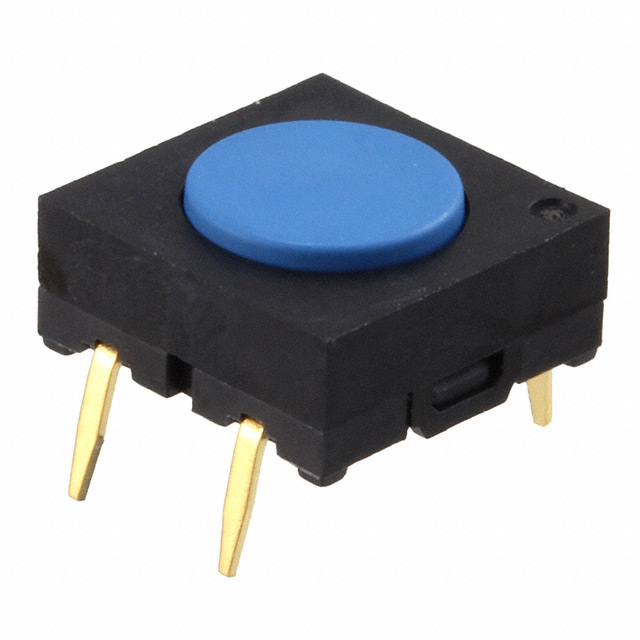

TACTILE SWITCH, JB SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 176 GF, 50MA AT 24VDC

Search across all available documentation for this part.

Active

NKK Switches

TACTILE SWITCH, JB SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 176 GF, 50MA AT 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	JB15FPG05

Actuator Height off PCB, Vertical [z]	4.9 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Features	Process Sealed
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles
Mounting Type	Through Hole
Operating Force	176 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Mounting Type	Illumination	Mechanical Life	Actuator Type	Termination Style	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Features	Switch Travel	Ingress Protection	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Operating Force	Switch Function	Outline [y]	Outline [x]
NKK Switches JB15FPG05	Through Hole	Non-Illuminated	5000000 Cycles	Round Button	PC Pin	Top Actuated	4.9 mm	Process Sealed	0.25 mm	IP67 - Dust Tight Waterproof	SPST-NO	70 °C	-25 °C	Polybutylene Terephthalate (PBT)	176 gf	Off-Mom	10 mm	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
