C3DEG-2618M

Active

CW Industries

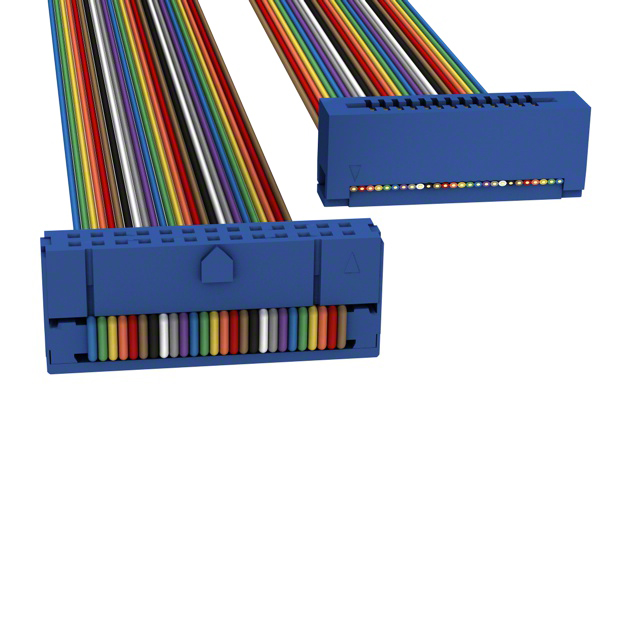

IDC CABLE - CKR26G/AE26M/CCE26G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR26G/AE26M/CCE26G

Technical Specifications

Parameters and characteristics for this part

Specification	C3DEG-2618M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Card Edge
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Length	Length	Length	Cable Termination	Number of Positions	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish	Shielding	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features	Color	Number of Rows	Length [x]	Length [x]
CW Industries C3DEG-2006M	152.4 mm	6 "	0.5 '	IDC	20	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Card Edge	Polarizing Key Strain Relief	Multiple Ribbon	2
CW Industries C3DEG-2636M				IDC	26	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Card Edge	Polarizing Key Strain Relief	Multiple Ribbon	2	3 ft	914.4 mm
CW Industries C3DEG-2618M				IDC	26	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Card Edge	Polarizing Key Strain Relief	Multiple Ribbon	2	1.5 ft	457.2 mm
CW Industries C3DEG-2618G				IDC	26	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Card Edge	Polarizing Key Strain Relief		2	1.5 ft	457.2 mm
CW Industries C3DEG-2018G				IDC	20	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Card Edge	Polarizing Key Strain Relief		2	1.5 ft	457.2 mm
CW Industries C3DEG-2636G				IDC	26	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Card Edge	Polarizing Key Strain Relief		2	3 ft	914.4 mm
CW Industries C3DEG-2036M				IDC	20	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Card Edge	Polarizing Key Strain Relief	Multiple Ribbon	2	3 ft	914.4 mm
CW Industries C3DEG-2018M				IDC	20	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Card Edge	Polarizing Key Strain Relief	Multiple Ribbon	2	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Cable Assembly Rectangular Socket to Card Edge 1.50' (457.20mm)
