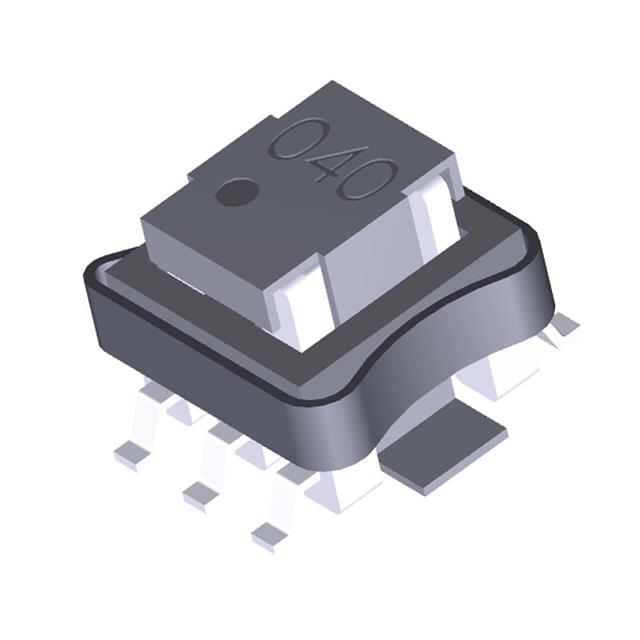

53020C

Active

Murata Power Solutions Inc.

CURRENT TRANSFORMER 1:20 500VRMS 0.007OHM PRIM. DCR 0.55OHM SEC. DCR 10000MA PRIM. 6 TERMINAL GULL WING SMD

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

CURRENT TRANSFORMER 1:20 500VRMS 0.007OHM PRIM. DCR 0.55OHM SEC. DCR 10000MA PRIM. 6 TERMINAL GULL WING SMD

Technical Specifications

Parameters and characteristics for this part

Specification	53020C

DC Resistance (DCR) [custom]	550 mOhm
DC Resistance (DCR) [custom]	7 mOhm
Frequency Range [Max]	500 kHz
Frequency Range [Min]	50 kHz
Height - Seated (Max) [Max] [z]	5.4 mm
Height - Seated (Max) [Max] [z]	0.213 in
Mounting Type	Surface Mount
Size / Dimension [x]	0.283 in
Size / Dimension [x]	7.2 mm
Size / Dimension [y]	8.3 mm
Size / Dimension [y]	0.327 in
Termination Style	Gull Wing
Turns Ratio - Primary:Secondary	1:20
Type	Invasive

Part	Frequency Range [Max]	Frequency Range [Min]	DC Resistance (DCR) [custom]	DC Resistance (DCR) [custom]	Termination Style	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Mounting Type	Type	Inductance	DC Resistance (DCR)	Turns Ratio - Primary:Secondary	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]
Murata Power Solutions Inc. 53070C	500 kHz	50 kHz	4.5 Ohm	7 mOhm	Gull Wing	5.4 mm	0.213 in	0.283 in	7.2 mm	8.3 mm	0.327 in	70	1	Surface Mount	Invasive	980 µH
Murata Power Solutions Inc. 53100C	500 kHz	50 kHz			Gull Wing	5.4 mm	0.213 in	0.283 in	7.2 mm	8.3 mm	0.327 in	100	1	Surface Mount	Invasive	2 mH	5.6 Ohm 7 mOhm
Murata Power Solutions Inc. 53030C	500 kHz	50 kHz	850 mOhm	7 mOhm	Gull Wing	5.4 mm	0.213 in	0.283 in	7.2 mm	8.3 mm	0.327 in			Surface Mount	Invasive	180 µH		1:30
Murata Power Solutions Inc. 53040C	500 kHz	50 kHz	1.1 Ohm	7 mOhm	Gull Wing	5.4 mm	0.213 in	0.283 in	7.2 mm	8.3 mm	0.327 in			Surface Mount	Invasive	320 µH			1	40
Murata Power Solutions Inc. 53020C	500 kHz	50 kHz	550 mOhm	7 mOhm	Gull Wing	5.4 mm	0.213 in	0.283 in	7.2 mm	8.3 mm	0.327 in			Surface Mount	Invasive			1:20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1:20 Current Sense Transformer 50kHz ~ 500kHz 7mOhm Primary, 550mOhm Secondary 80 µH Surface Mount
