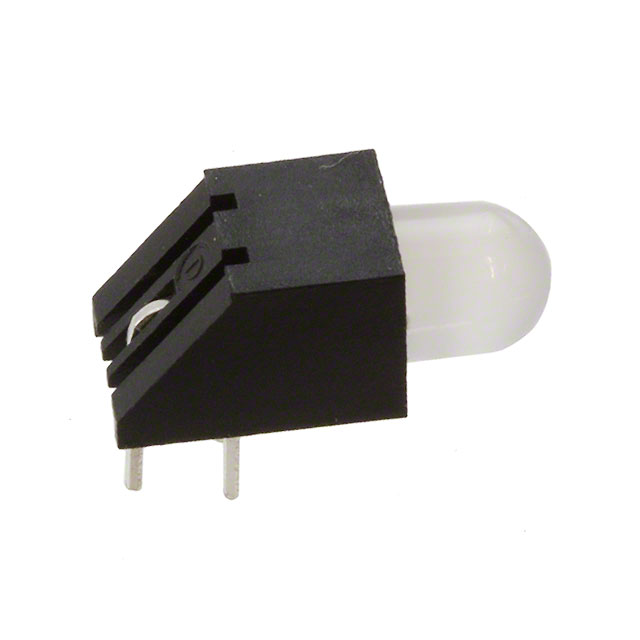

5503507010F

Active

DIALIGHT

LED CBI 5MM GRN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

5503507010F

Active

DIALIGHT

LED CBI 5MM GRN/RED RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5503507010F

Color	Red, Green
Configuration	Single
Current	10 mA
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Clear
Millicandela Rating	5 mcd, 8 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	65 °
Voltage Rating [custom]	2.3 V
Voltage Rating [custom]	2.1 V
Wavelength - Peak	565 nm, 635 nm

5503507 Series

Part	Lens Size	Lens Size	Lens Style	Mounting Type	Lens Type	Voltage Rating [custom]	Voltage Rating [custom]	Millicandela Rating	Wavelength - Peak	Color	Viewing Angle	Configuration	Current
DIALIGHT 5503507801F	T-1 3/4	5 mm	Round with Domed Top	Through Hole Right Angle
DIALIGHT 5503507010F	T-1 3/4	5 mm	Round with Domed Top	Through Hole Right Angle	Clear	2.3 V	2.1 V	5 mcd 8 mcd	565 nm 635 nm	Green Red	65 °	Single	10 mA
DIALIGHT 5503507F	T-1 3/4	5 mm	Round with Domed Top	Through Hole Right Angle	Clear	2.3 V	2.1 V	5 mcd 8 mcd	565 nm 635 nm	Green Red	65 °	Single	10 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.03
		10	$ 1.34
		100	$ 1.02

Description

General part information

5503507 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Clear 2.3V Green, 2.1V Red 10mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
