FWN0.75BK100

Active

Techflex

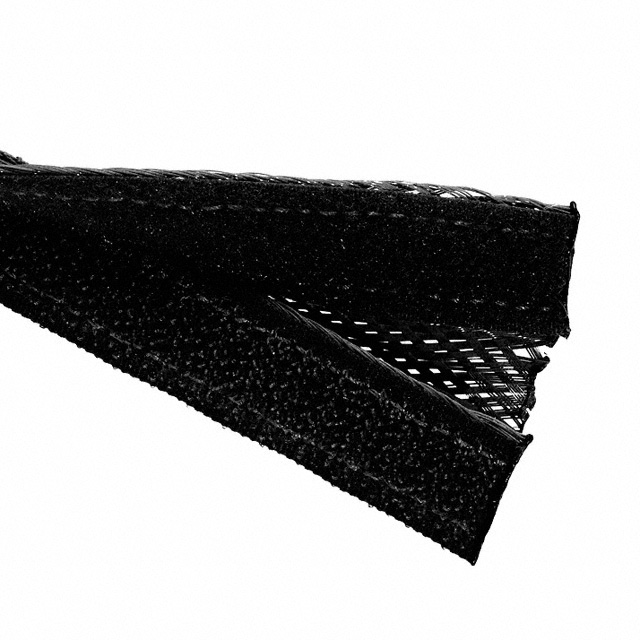

SELF WRAP 3/4" X 100' BLACK

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 3/4" X 100' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	FWN0.75BK100

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	19.05 mm
Diameter - Inside, Non-Expanded [diameter]	0.75 in
Features	Hook and Loop Closure Strip, Clean Cut
Length	100 ft
Length	30.48 m
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Wall Thickness [custom]	Wall Thickness [custom]	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Features	Material Flammability Rating	Type	Length	Length	Abrasion Protection
Techflex FWN0.75BK100	0.025 in	0.64 mm	Split Flexible Tube	19.05 mm	0.75 in	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	Black	Clean Cut Hook and Loop Closure Strip	UL94 V-0	Self Wrap	100 ft	30.48 m	Abrasion and Cut Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Self Wrap X 100' (30.48m) Black
