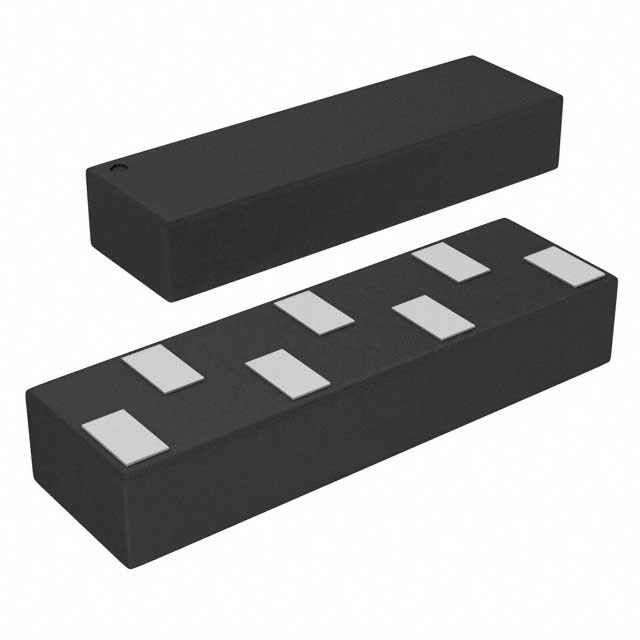

RCLAMP3346P.TNT

Active

Semtech Corporation

TRANS VOLTAGE SUPPRESSOR DIODE, 3.3V V(RWM), UNIDIRECTIONAL, 1 ELEMENT, SILICON,

Deep-Dive with AI

Search across all available documentation for this part.

RCLAMP3346P.TNT

Active

Semtech Corporation

TRANS VOLTAGE SUPPRESSOR DIODE, 3.3V V(RWM), UNIDIRECTIONAL, 1 ELEMENT, SILICON,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP3346P.TNT

Applications	USB
Capacitance @ Frequency	0.6 pF
Current - Peak Pulse (10/1000µs)	4.5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	7-UDFN
Power Line Protection	False
Supplier Device Package	SGP2708N7
Type	Steering
Unidirectional Channels [custom]	6
Voltage - Breakdown (Min) [Min]	7 V
Voltage - Clamping (Max) @ Ipp [Max]	4.5 V
Voltage - Reverse Standoff (Typ)	3.3 V

RCLAMP3346 Series

Part	Current - Peak Pulse (10/1000µs)	Mounting Type	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Unidirectional Channels [custom]	Package / Case	Supplier Device Package	Type	Capacitance @ Frequency	Applications	Grade	Power Line Protection	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)
Semtech Corporation RCLAMP3346PQTNT	4.5 A	Surface Mount	AEC-Q100	-40 °C	125 ¯C	6	7-UDFN	SGP2708N7	Steering	0.6 pF	USB	Automotive		7 V	4.5 V	3.3 V
Semtech Corporation RCLAMP3346P.TNT	4.5 A	Surface Mount		-40 °C	125 ¯C	6	7-UDFN	SGP2708N7	Steering	0.6 pF	USB			7 V	4.5 V	3.3 V
