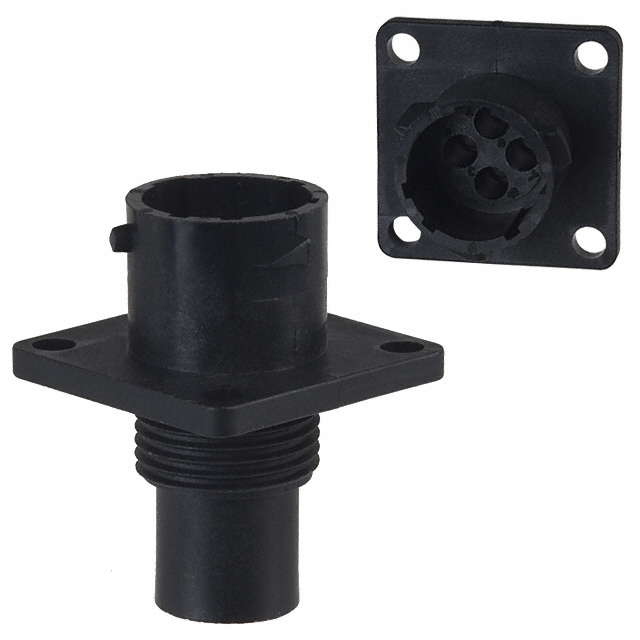

UTP0104P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 4POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

UTP0104P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 4POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTP0104P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Shell Size - Insert	10-4
Shielding	Unshielded
Type	For Male Pins

UTP01 Series

Part	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Size - Insert	Note	Housing Color	Number of Positions	Contact Type	Orientation	Ingress Protection	Material Flammability Rating	Type	Contact Shape	Contact Size	Fastening Type	Shielding	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]
Souriau-Sunbank by Eaton UTP0128PH	Flange	125 °C	-25 °C	Receptacle Housing	12-8	Contacts Not Included	Black	8	Crimp	N	IP65 - Dust Tight Water Resistant	UL94 V-0	For Male Pins	Circular	16	Bayonet Lock	Unshielded
Souriau-Sunbank by Eaton UTP0187PH	Flange	125 °C	-25 °C	Receptacle Housing	18-7	Contacts Not Included	Black		Crimp	N	IP65 - Dust Tight Water Resistant	UL94 V-0	For Male Pins	Circular	16	Bayonet Lock	Unshielded	1	6
Souriau-Sunbank by Eaton UTP01619S	Flange	125 °C	-25 °C	Receptacle Housing		Contacts Not Included	Black	19	Crimp	N		UL94 V-0	For Female Sockets	Circular	16	Bayonet Lock	Unshielded			16	19
Souriau-Sunbank by Eaton UTP0122G1PH	Flange	125 °C	-55 °C	Receptacle Housing	12-2	Contacts Not Included	Black		Crimp	N	IP65 - Dust Tight Water Resistant	UL94 V-0	For Male Pins	Circular	12	Bayonet Lock	Unshielded					2	3	1
Souriau-Sunbank by Eaton UTP01412S	Flange	125 °C	-25 °C	Receptacle Housing	14-12	Contacts Not Included	Black	12	Crimp	N		UL94 V-0	For Female Sockets	Circular	16	Bayonet Lock	Unshielded
Souriau-Sunbank by Eaton UTP01619P	Flange	125 °C	-25 °C	Receptacle Housing		Contacts Not Included	Black	19	Crimp	N		UL94 V-0	For Male Pins	Circular	16	Bayonet Lock	Unshielded			16	19
Souriau-Sunbank by Eaton UTP01412SH	Flange	125 °C	-25 °C	Receptacle Housing	14-12	Contacts Not Included	Black	12	Crimp	N	IP65 - Dust Tight Water Resistant	UL94 V-0	For Female Sockets	Circular	16	Bayonet Lock	Unshielded
Souriau-Sunbank by Eaton UTP01823SH	Flange	125 °C	-25 °C	Receptacle Housing		Contacts Not Included	Black	23	Crimp	N	IP65 - Dust Tight Water Resistant	UL94 V-0	For Female Sockets	Circular	16	Bayonet Lock	Unshielded								18	23
Souriau-Sunbank by Eaton UTP0187P	Flange	125 °C	-25 °C	Receptacle Housing	18-7	Contacts Not Included	Black		Crimp	N		UL94 V-0	For Male Pins	Circular	16	Bayonet Lock	Unshielded	1	6
Souriau-Sunbank by Eaton UTP0104P	Flange	125 °C	-25 °C	Receptacle Housing	10-4	Contacts Not Included	Black	4	Crimp	N		UL94 V-0	For Male Pins	Circular	16	Bayonet Lock	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.02
		10	$ 14.20
		25	$ 13.65
		50	$ 13.11
		100	$ 12.38
		250	$ 11.29
		500	$ 10.56
		1000	$ 9.69

Description

General part information

UTP01 Series

4 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

No documents available
