C091 31F012 100 2

Active

Amphenol Tuchel Industrial

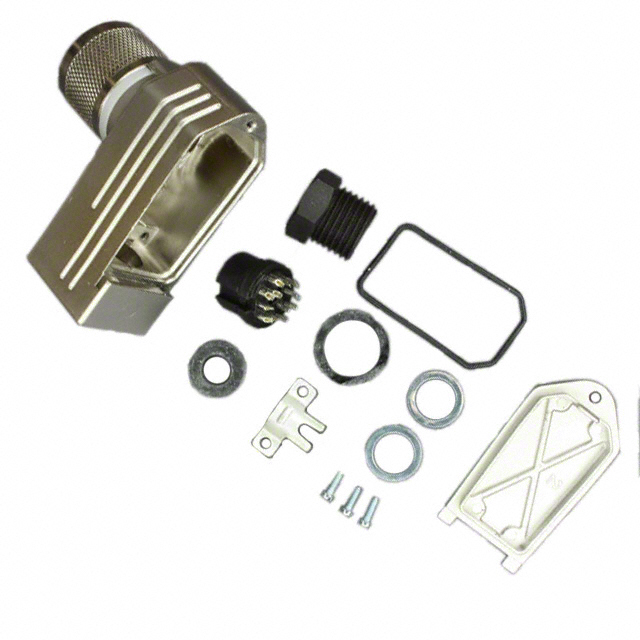

CONN PLUG FMALE 12P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 12P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	C091 31F012 100 2

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	3 A
Features	Strain Relief
Ingress Protection	IP69K, IP65, IP67
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	12
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-12
Shielding	Shielded
Voltage Rating	250 VDC

Part	Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shell Finish	Features	Shell Material	Shell Size - Insert	Voltage Rating	Shielding	Current Rating (Amps)	Ingress Protection	Primary Material	Orientation	Number of Positions	Contact Finish - Mating
Amphenol Tuchel Industrial C091 31F012 100 2	Silver	Female Sockets Plug	100 °C	-40 °C	Free Hanging (In-Line) Right Angle	Nickel	Strain Relief	Die Cast	M16-12	250 VDC	Shielded	3 A	IP65 IP67 IP69K	Metal	Keyed	12	Silver
Amphenol Tuchel Industrial C091 31F012 101 2	Silver	Female Sockets Plug	100 °C	-40 °C	Free Hanging (In-Line) Right Angle	Nickel	Strain Relief	Die Cast	M16-12	250 VDC	Shielded	3 A	IP65 IP67 IP69K	Metal	Keyed	12	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 27.33

General part information

12 Position Circular Connector Plug, Female Sockets Solder Cup
