Technical Specifications
Parameters and characteristics for this part
| Specification | SBCH74K7J |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 350 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 7 W |
| Resistance | 4.7 kOhms |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 0.354 in |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [z] | 25 mm |
| Size / Dimension [z] | 0.984 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.79 | |
| 10 | $ 1.50 | |||
| 250 | $ 1.04 | |||
| 1000 | $ 0.75 | |||
| 5000 | $ 0.73 | |||
| 10000 | $ 0.71 | |||
Description
General part information
SBCH7 Series

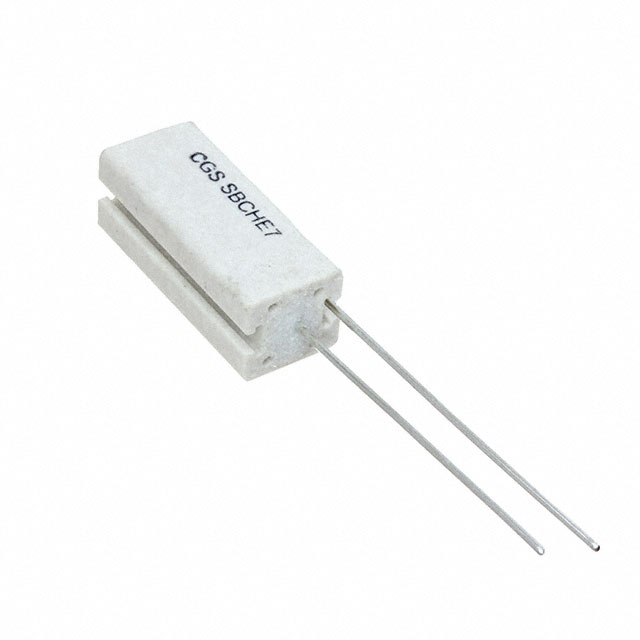

4.7 kOhms ±5% 7W Through Hole Resistor Axial Flame Proof, Safety Wirewound
