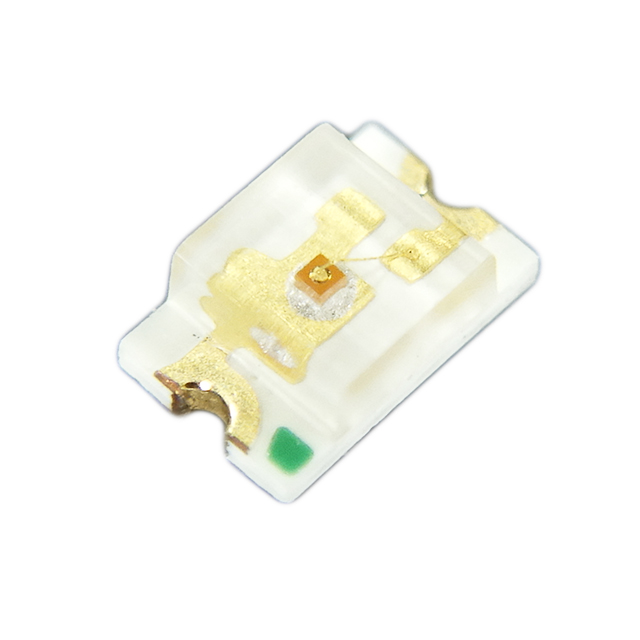

QBLP631-AG1

Active

QT Brightek (QTB)

LED GREEN CLEAR 0805 SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED GREEN CLEAR 0805 SMD

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Color	Configuration	Package / Case	Lens Transparency	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Wavelength - Dominant	Lens Color	Lens Size [x]	Lens Size [y]	Current - Test	Mounting Type	Height (Max) [Max]	Viewing Angle	Wavelength - Peak
QT Brightek (QTB) QBLP631-S	2 V	0805	Red	Standard	0805	Clear	Rectangle with Flat Top	2 mm	1.25 mm	50 mcd	640 nm	Colorless	1.3 mm	1.25 mm	20 mA	Surface Mount	0.9 mm
QT Brightek (QTB) QBLP631-R	2 V	0805	Red	Standard	0805	Clear	Rectangle with Flat Top	2 mm	1.25 mm	100 mcd	625 nm	Colorless	1.3 mm	1.25 mm	20 mA	Surface Mount	0.9 mm	140 °
QT Brightek (QTB) QBLP631-AG1	2 V	0805	Green	Standard	0805	Clear	Rectangle with Flat Top	2 mm	1.25 mm	63 mcd	570 nm	Colorless	1.3 mm	1.25 mm	20 mA	Surface Mount	0.9 mm	140 °
QT Brightek (QTB) QBLP631-YG1-2943	2 V	0805	Green	Standard	0805	Diffused	Rectangle with Flat Top	2 mm	1.25 mm	15 mcd	570 nm	White	1.3 mm	1.25 mm	20 mA	Surface Mount	0.9 mm	140 °	565 nm
QT Brightek (QTB) QBLP631-IW5-2897	2.8 V	0805	White	Standard	0805	Diffused	Rectangle with Flat Top	2 mm	1.25 mm	240 mcd		Yellow	1.3 mm	1.25 mm	5 mA	Surface Mount	0.9 mm	140 °
QT Brightek (QTB) QBLP631-S3	1.9 V	0805	Red	Standard	0805	Clear	Rectangle with Flat Top	2 mm	1.25 mm	25 mcd	640 nm	Colorless	1.3 mm	1.25 mm	20 mA	Surface Mount	0.9 mm	140 °	660 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 570nm LED Indication - Discrete 2V 0805 (2012 Metric)
