1414A4
ActiveHammond Manufacturing
BOX STEEL GRAY 4"L X 4"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsEnclosure Overview
1414A4
ActiveHammond Manufacturing
BOX STEEL GRAY 4"L X 4"W
Deep-Dive with AI
DocumentsEnclosure Overview
Technical Specifications
Parameters and characteristics for this part
| Specification | 1414A4 |
|---|---|
| Area (L x W) | 16 in˛ |
| Area (L x W) | 103 cm˛ |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Height [z] | 101.6 mm |
| Height [z] | 101.6 mm |
| Material | Metal, Steel |
| Ratings | UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12 |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Thickness | 14 Gauge |
| Weight | 1.4 kg |
| Weight | 3.1 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 65.07 | |
Description
General part information
1414A Series

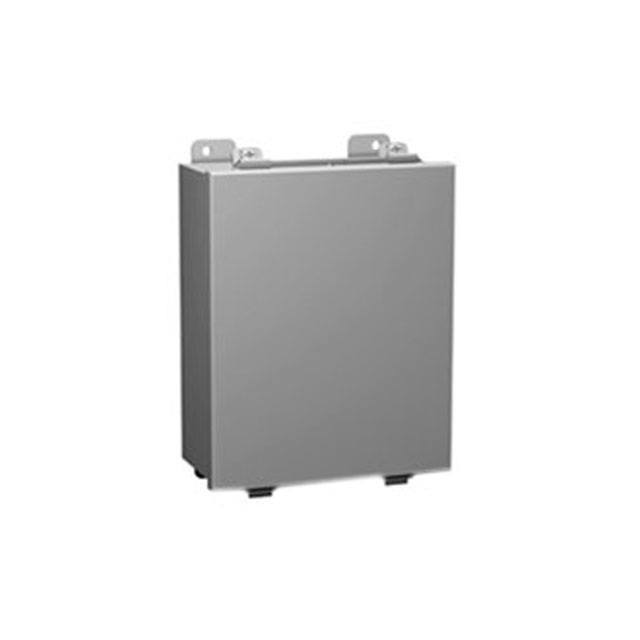

Box Metal, Steel Gray Cover Included 4.000" L x 4.000" W (101.60mm x 101.60mm) X 4.000" (101.60mm)
Documents
Technical documentation and resources
