Q2-F-1/8-01-SS500FT

Active

Qualtek

HEATSHRK BLK 1/8X0.75" 50=50PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRK BLK 1/8X0.75" 50=50PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-1/8-01-SS500FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	1.57 mm
Inner Diameter - Recovered [diameter]	0.062 in
Inner Diameter - Supplied [diameter]	3.18 mm
Inner Diameter - Supplied [diameter]	0.125 "
Length	0.062 '
Length	19.05 mm
Length	0.75 "
Length	Enter Number of Feet in Order Quantity
Length [x]	4 "
Length [x]	0.333 ft
Length [x]	101.6 mm
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.019 "
Recovered Wall Thickness	0.48 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Spool Size	500 '
Spool Size	152.4 m
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Shelf Life	Color	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Length	Length	Length [x]	Length [x]	Length [x]	Length	Spool Size	Spool Size	Length
Qualtek Q2-F-1/8-01-QX50FT	144 Months	Black	0.019 "	0.48 mm	1.57 mm	0.062 in	2 to 1	-50 °F -10 °C	40 °C	Polyolefin (PO)	70 °C	135 °C	-55 °C	Tubing Flexible	3.18 mm	0.125 "	Flame Retardant	15.2 m	50 ft
Qualtek Q2-F-1/8-01-SS500FT	144 Months	Black	0.019 "	0.48 mm	1.57 mm	0.062 in	2 to 1	-50 °F -10 °C	40 °C	Polyolefin (PO)	70 °C	135 °C	-55 °C	Tubing Flexible	3.18 mm	0.125 "	Flame Retardant	19.05 mm	0.062 '	4 "	0.333 ft	101.6 mm	0.75 "	500 '	152.4 m	Enter Number of Feet in Order Quantity
Qualtek Q2-F-1/8-01-QB48IN-25	144 Months	Black	0.019 "	0.48 mm	1.57 mm	0.062 in	2 to 1	-50 °F -10 °C	40 °C	Polyolefin (PO)	70 °C	135 °C	-55 °C	Tubing Flexible	3.18 mm	0.125 "	Flame Retardant				4 ft	1.22 m
Qualtek Q2-F-1/8-01-MS100FT	144 Months	Black	0.019 "	0.48 mm	1.57 mm	0.062 in	2 to 1	-50 °F -10 °C	40 °C	Polyolefin (PO)	70 °C	135 °C	-55 °C	Tubing Flexible	3.18 mm	0.125 "	Flame Retardant				100 ft	30.5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

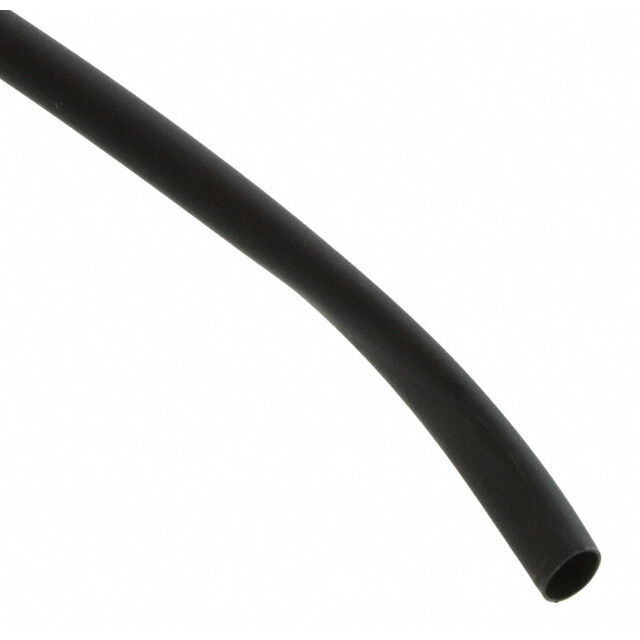

Heat Shrink Tubing, Flexible 0.125" (3.18mm) 2 to 1 Black 0.062' (19.05mm, 0.75")
