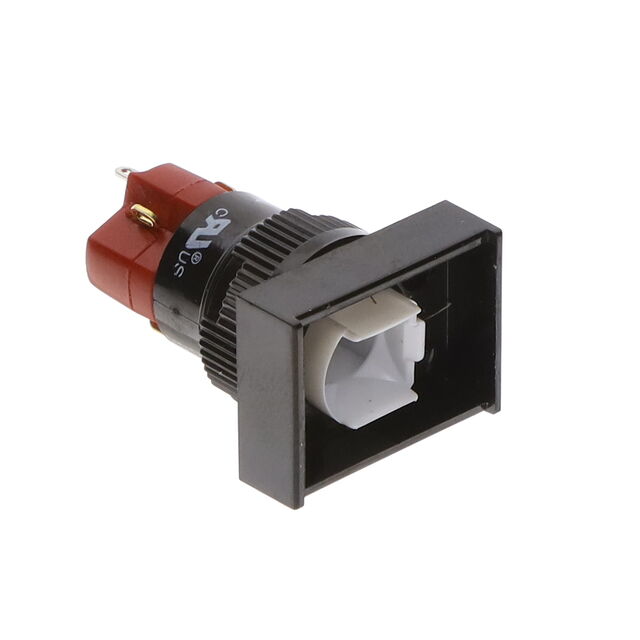

D16EET11

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 6A/24VDC; 5A/250VAC; ON PANEL

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 6A/24VDC; 5A/250VAC; ON PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	D16EET11

Actuator Type	Rectangular, Button (Not Included)
Circuit	SPDT
Current Rating (Amps)	8 A, 6 A
Electrical Life	50000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Voltage Rating - AC	Termination Style	Panel Cutout Dimensions [diameter]	Mechanical Life	Type	Circuit	Switch Function	Voltage Rating - DC	Mounting Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Electrical Life
E-Switch D16EET11	125 V	Solder Lug	16 mm	100000 Cycles	Standard	SPDT	On-On	24 V	Panel Mount Front	Rectangular Button (Not Included)	55 °C	-20 C	6 A 8 A	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
