90869-1
ActiveTE Application Tooling

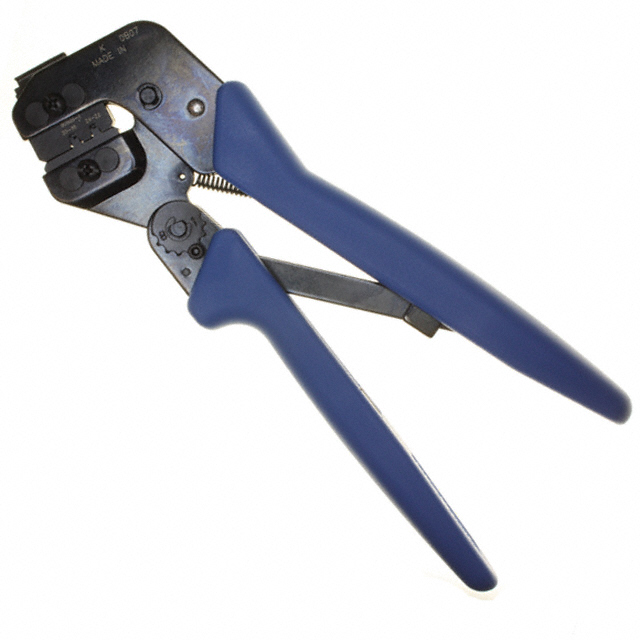

TOOL HAND CRIMPER 18-24AWG SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
90869-1
ActiveTE Application Tooling
TOOL HAND CRIMPER 18-24AWG SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 90869-1 |
|---|---|
| For Use With/Related Products | Rectangular Contacts |
| Ratcheting | Ratchet |
| Tool Type | Hand Crimper |
| Wire Entry Location | Side Entry |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 18 AWG |
90869 Series
| Part | Wire Entry Location | For Use With/Related Products | Tool Type | Ratcheting | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Compatible Tools |
|---|---|---|---|---|---|---|---|
TE Application Tooling | Side Entry | Rectangular Contacts | Hand Crimper | Ratchet | 18 AWG | 24 AWG | |
TE Application Tooling | Rectangular Contacts 18-24 AWG | Die Set | 1213890-1 1213890-2 1490076-2 354940-1 679304-1 9-1478240-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 304.10 | |
| 10 | $ 284.48 | |||
Description
General part information
90869 Series
Hand Crimper Tool Rectangular Contacts
