C3DEG-5006M

Active

CW Industries

IDC CABLE - CKR50G/AE50M/CCE50G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR50G/AE50M/CCE50G

Technical Specifications

Parameters and characteristics for this part

Specification	C3DEG-5006M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Card Edge
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Number of Positions	Pitch - Cable	Pitch - Cable	Cable Termination	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Connector Type	Contact Finish	Color	Length	Length	Length
CW Industries C3DEG-5036G	Polarizing Key Strain Relief	10 Áin	0.25 Ám	3 ft	914.4 mm	50	0.05 "	1.27 mm	IDC	2	0.1 in	2.54 mm	Unshielded	Socket to Card Edge	Gold
CW Industries C3DEG-5006M	Polarizing Key Strain Relief	10 Áin	0.25 Ám			50	0.05 "	1.27 mm	IDC	2	0.1 in	2.54 mm	Unshielded	Socket to Card Edge	Gold	Multiple Ribbon	152.4 mm	6 "	0.5 '
CW Industries C3DEG-5006G	Polarizing Key Strain Relief	10 Áin	0.25 Ám			50	0.05 "	1.27 mm	IDC	2	0.1 in	2.54 mm	Unshielded	Socket to Card Edge	Gold		152.4 mm	6 "	0.5 '
CW Industries C3DEG-5036M	Polarizing Key Strain Relief	10 Áin	0.25 Ám	3 ft	914.4 mm	50	0.05 "	1.27 mm	IDC	2	0.1 in	2.54 mm	Unshielded	Socket to Card Edge	Gold	Multiple Ribbon
CW Industries C3DEG-5018G	Polarizing Key Strain Relief	10 Áin	0.25 Ám	1.5 ft	457.2 mm	50	0.05 "	1.27 mm	IDC	2	0.1 in	2.54 mm	Unshielded	Socket to Card Edge	Gold
CW Industries C3DEG-5018M	Polarizing Key Strain Relief	10 Áin	0.25 Ám	1.5 ft	457.2 mm	50	0.05 "	1.27 mm	IDC	2	0.1 in	2.54 mm	Unshielded	Socket to Card Edge	Gold	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

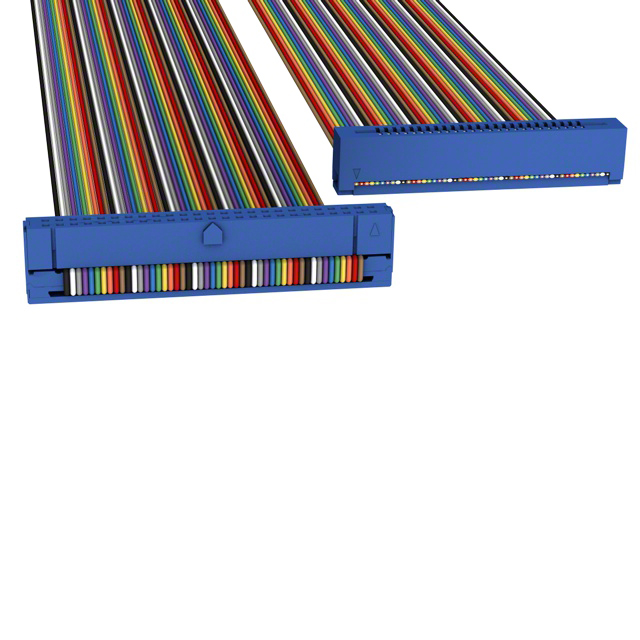

50 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")
