FAD1-03010CHMW11

Active

Qualtek

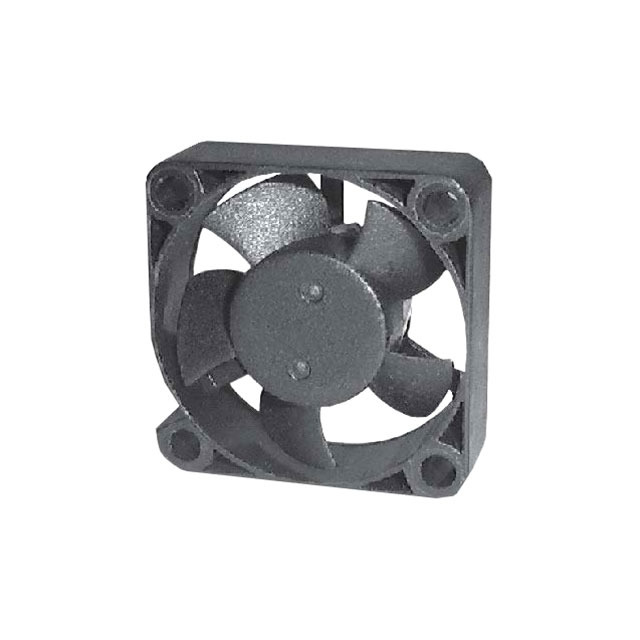

FAN AXIAL 30X10MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Axial Fans

FAD1-03010CHMW11

Active

Qualtek

FAN AXIAL 30X10MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Axial Fans

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FAD1-03010CHMW11

Air Flow	3.3 CFM
Air Flow	0.092 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Hydrodynamic
Current Rating (Amps)	45 mA
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	30 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	540 mW
RPM	9000 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Static Pressure	0.148 in H2O
Static Pressure	37 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.018 lb
Weight	8.16 g
Width [y]	10 mm

FAD1-03010 Series

Part	Noise	Approval Agency	Bearing Type	Material - Blade	Static Pressure	Static Pressure	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Material - Frame	Fan Type	Power (Watts)	Weight	Weight	Termination	RPM	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension [z]
Qualtek FAD1-03010CHAW11	19 dB(A)	CE cURus TUV	Hydrodynamic	Plastic	17 Pa	0.068 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	35 mA	Plastic	Tubeaxial	420 mW	0.018 lb	8.16 g	2 Wire Leads	6000 RPM	13.2 VDC	10.8 VDC	10 mm	0.061 m³/min	2.2 CFM	30 mm	30 mm
Qualtek FAD1-03010CHMW11	30 dB(A)	CE cURus TUV	Hydrodynamic	Plastic	37 Pa	0.148 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	45 mA	Plastic	Tubeaxial	540 mW	0.018 lb	8.16 g	2 Wire Leads	9000 RPM	13.2 VDC	10.8 VDC	10 mm	0.092 m³/min	3.3 CFM	30 mm	30 mm
Qualtek FAD1-03010BBAW11	19 dB(A)	CE cURus TUV	Ball	Plastic	17 Pa	0.068 in H2O	5 V	70 °C	70 °C	-10 °C	-10 °C	450 mA	Plastic	Tubeaxial		0.018 lb	8.16 g	2 Wire Leads	6000 RPM	5.5 V	4.5 V	10 mm	0.061 m³/min	2.2 CFM	30 mm	30 mm
Qualtek FAD1-03010CHHW11	34 dB(A)	CE cURus TUV	Hydrodynamic	Plastic	49.8 Pa	0.2 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	0.053 A	Plastic	Tubeaxial	640 mW	0.018 lb	8.16 g	2 Wire Leads	10500 RPM	13.2 VDC	10.8 VDC	10 mm	0.112 m³/min	4 CFM	30 mm	30 mm
Qualtek FAD1-03010CBAW11	19 dB(A)	CE cURus TUV	Ball	Plastic	17 Pa	0.068 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	35 mA	Plastic	Tubeaxial	420 mW	0.018 lb	8.16 g	2 Wire Leads	6000 RPM	13.2 VDC	10.8 VDC	10 mm	0.061 m³/min	2.2 CFM	30 mm	30 mm
Qualtek FAD1-03010BHHW11	34 dB(A)	CE cURus TUV	Hydrodynamic	Plastic	49.8 Pa	0.2 in H2O	5 V	70 °C	70 °C	-10 °C	-10 °C	0.095 A	Plastic	Tubeaxial		0.018 lb	8.16 g	2 Wire Leads	10500 RPM	5.5 V	4.5 V	10 mm	0.112 m³/min	4 CFM	30 mm	30 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FAD1-03010 Series

Fan Tubeaxial 12VDC Square - 30mm L x 30mm H Hydrodynamic 3.3 CFM (0.092m³/min) 2 Wire Leads
