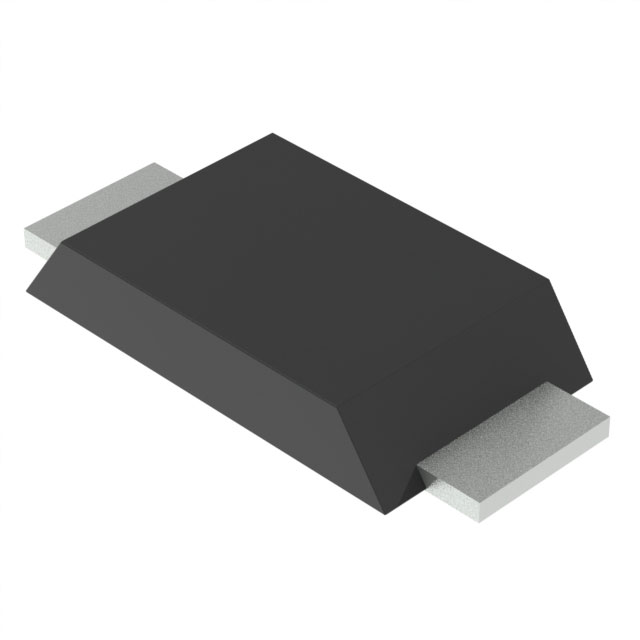

L9204FR
ActiveCEL
RF PIN DIODE 180V 1W PLASTIC PKG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L9204FR
ActiveCEL
RF PIN DIODE 180V 1W PLASTIC PKG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L9204FR |
|---|---|
| Capacitance @ Vr, F | 0.9 pF |
| Current - Max [Max] | 50 mA |
| Diode Type | PIN - Single |
| Operating Temperature | 150 °C |
| Package / Case | SOD-123T |
| Power Dissipation (Max) [Max] | 1 W |
| Resistance @ If, F | 650 mOhm |
| Supplier Device Package | SOD-123ST |
| Voltage - Peak Reverse (Max) [Max] | 180 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.23 | |
| 6000 | $ 1.18 | |||
Description
General part information
L9204 Series
RF Diode PIN - Single 180V 50 mA 1 W SOD-123ST
