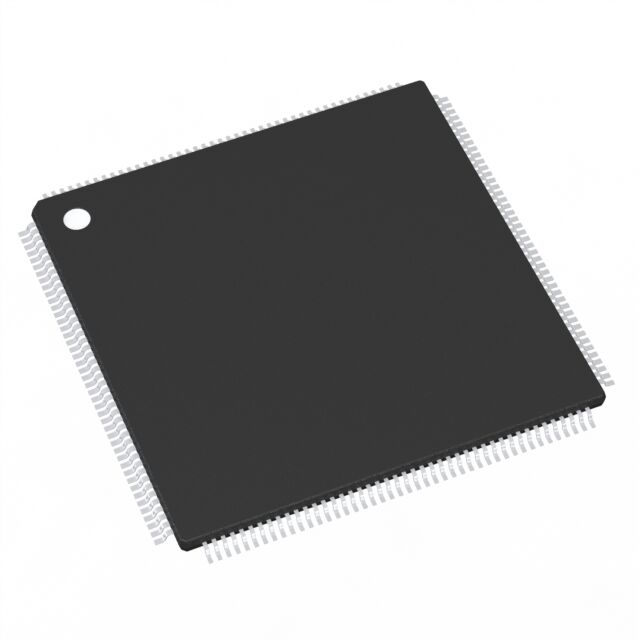

TDA8754HL/14/C1,51

Obsolete

Freescale Semiconductor - NXP

IC ADC/VIDEO 8BIT 140M 144LQFP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC ADC/VIDEO 8BIT 140M 144LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	TDA8754HL/14/C1,51

Data Interface	Serial
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Package / Case	144-LQFP
Resolution (Bits)	8 b
Sampling Rate (Per Second)	140 M
Supplier Device Package	144-LQFP (20x20)
Type	ADC, Video
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V
Voltage Supply Source	Analog and Digital

Part	Mounting Type	Data Interface	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Number of Channels [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case	Voltage Supply Source	Resolution (Bits)	Supplier Device Package	Sampling Rate (Per Second)	Voltage - Supply	Control Interface	Function	Applications
Freescale Semiconductor - NXP TDA8754HL/17/C1,51	Surface Mount	Serial	-10 °C	158 °F	2	3.6 V	3 V	ADC Video	144-LQFP	Analog and Digital	8 b	144-LQFP (20x20)	170 M
Freescale Semiconductor - NXP TDA8754HL/14/C1,51	Surface Mount	Serial	-10 °C	158 °F	2	3.6 V	3 V	ADC Video	144-LQFP	Analog and Digital	8 b	144-LQFP (20x20)	140 M
Freescale Semiconductor - NXP TDA8754HL/14/C1,55	Surface Mount	Serial	-10 °C	158 °F	2	3.6 V	3 V	ADC Video	144-LQFP	Analog and Digital	8 b	144-LQFP (20x20)	270 M
Freescale Semiconductor - NXP TDA8759HV/8/C1,557	Surface Mount								176-LQFP Exposed Pad			176-HLQFP (24x24)		3.3 V	I2C	Converter	Consumer Video

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ADC, Video 8 b 140M Serial 144-LQFP (20x20)
