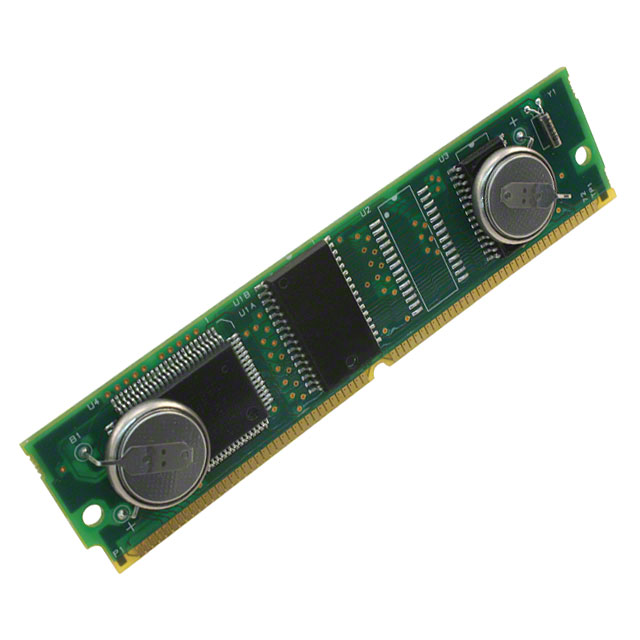

DS2251T-128-16#
ObsoleteAnalog Devices Inc./Maxim Integrated
IC MCU 8BIT 128KB NVSRAM 72SIMM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS2251T-128-16#
ObsoleteAnalog Devices Inc./Maxim Integrated
IC MCU 8BIT 128KB NVSRAM 72SIMM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS2251T-128-16# |
|---|---|
| Connectivity | SIO, UART/USART |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Mounting Type | Surface Mount |
| Number of I/O | 32 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Oscillator Type | External |
| Package / Case | 72-SIMM |
| Program Memory Size | 128 KB |
| Program Memory Type | NVSRAM |
| Speed | 16 MHz |
| Supplier Device Package | 72-SIMM |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DS2251 Series
8051 DS225x Microcontroller IC 8-Bit 16MHz 128KB (128K x 8) NVSRAM 72-SIMM
