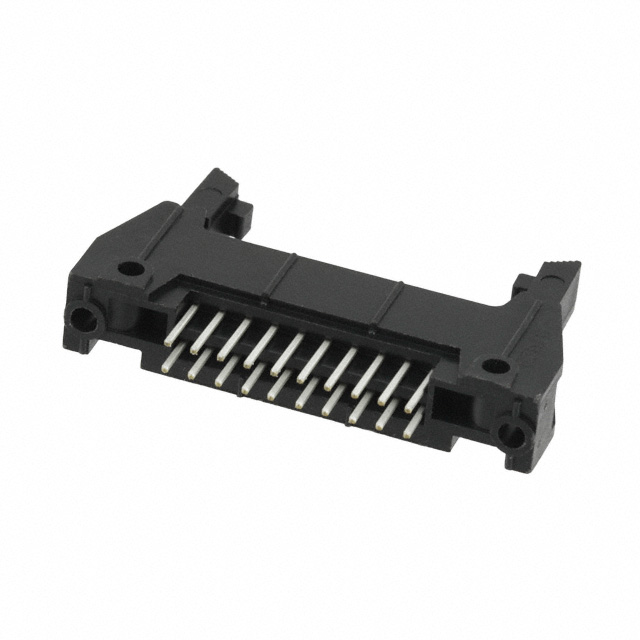

N3428-6302RB

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N3428-6302RB

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N3428-6302RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long
Insulation Color	Black
Insulation Height	17.27 mm
Insulation Height	0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.652 in
Overall Contact Length	16.56 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N3428 Series

Part	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Style	Contact Material	Shrouding	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Termination	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Number of Rows	Connector Type	Number of Positions Loaded	Current Rating (Amps)	Insulation Color	Mounting Type	Contact Finish - Post	Fastening Type	Contact Length - Mating	Contact Length - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]
3M (TC) N3428-6002RB	2.84 mm	0.112 in	0.1 in	2.54 mm	Gold	Board to Board Cable	Copper Alloy	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	30 Áin	0.76 Ám	105 ░C	-55 °C	Square	Solder	UL94 V-0	17.27 mm	0.68 in	20	Male Pin	2.54 mm	0.1 in	0.652 in	16.56 mm	2	Header	All	1.75 A	Black	Through Hole	Tin	Push-Pull	6.1 mm	0.24 in
3M (TC) N3428-5503	3.94 mm	0.155 "	0.1 in	2.54 mm	Gold	Board to Board Cable	Copper Alloy	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	30 Áin	0.76 Ám	105 ░C	-55 °C	Square	Solder	UL94 V-0	8.64 mm	0.34 in	20	Male Pin	2.54 mm	0.1 in			2	Header	All	1.75 A	Black	Through Hole Right Angle	Tin-Lead	Latch Lock/Eject Hooks Short	6.1 mm	0.24 in
3M (TC) N3428-6302RB	2.84 mm	0.112 in	0.1 in	2.54 mm	Gold	Board to Board Cable	Copper Alloy	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	30 Áin	0.76 Ám	105 ░C	-55 °C	Square	Solder	UL94 V-0	17.27 mm	0.68 in	20	Male Pin	2.54 mm	0.1 in	0.652 in	16.56 mm	2	Header	All	1.75 A	Black	Through Hole	Tin	Latch Lock/Eject Hooks Long	6.1 mm	0.24 in
3M (TC) N3428-6003RB	3.94 mm	0.155 "	0.1 in	2.54 mm	Gold	Board to Board Cable	Copper Alloy	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	30 Áin	0.76 Ám	105 ░C	-55 °C	Square	Solder	UL94 V-0	17.27 mm	0.68 in	20	Male Pin	2.54 mm	0.1 in	0.695 in	17.65 mm	2	Header	All	1.75 A	Black	Through Hole	Tin	Push-Pull	6.1 mm	0.24 in
3M (TC) N3428-5305EB	15.49 mm	0.61 in	0.1 in	2.54 mm	Gold	Board to Board Cable	Phosphor Bronze	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT) Glass Filled			30 Áin	0.76 Ám	105 ░C	-55 °C	Square	Wire Wrap	UL94 V-0	8.64 mm	0.34 in	20	Male Pin	2.54 mm	0.1 in			2	Header	All		Black	Through Hole Right Angle		Latch Lock/Eject Hooks Long	6.1 mm	0.24 in
3M (TC) N3428-1203RB	3.94 mm	0.155 "	0.1 in	2.54 mm	Gold	Board to Board Cable	Copper Alloy	Shrouded - 3 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	30 Áin	0.76 Ám	105 ░C	-55 °C	Square	Solder	UL94 V-0	7.87 mm	0.31 in	20	Male Pin	2.54 mm	0.1 in			2	Header	All	1.75 A	Black	Through Hole Right Angle	Tin	Latch Lock/Eject Hooks Short	6.1 mm	0.24 in
3M (TC) N3428-620T02RB	4.45 mm	0.175 in	0.1 in	2.54 mm	Gold	Board to Board Cable	Copper Alloy	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	300 µin	7.62 µm	30 Áin	0.76 Ám	105 ░C	-55 °C	Square	Press-Fit Solder	UL94 V-0	17.27 mm	0.68 in	20	Male Pin	2.54 mm	0.1 in			2	Header	All	1.75 A	Black	Through Hole	Tin	Latch Lock/Eject Hooks Short	6.1 mm	0.24 in	0.715 "	18.16 mm
3M (TC) N3428-3005EB	15.49 mm	0.61 in	0.1 in	2.54 mm	Gold	Board to Board Cable	Phosphor Bronze	Shrouded - 3 Wall	Polybutylene Terephthalate (PBT) Glass Filled			30 Áin	0.76 Ám	105 ░C	-55 °C	Square	Wire Wrap	UL94 V-0	8.64 mm	0.34 in	20	Male Pin	2.54 mm	0.1 in			2	Header	All	1.75 A	Black	Through Hole Right Angle		Push-Pull	6.1 mm	0.24 in
3M (TC) N3428-L202RB	2.84 mm	0.112 in	0.1 in	2.54 mm	Gold	Board to Board Cable	Copper Alloy	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	30 Áin	0.76 Ám	105 ░C	-55 °C	Square	Solder	UL94 V-0	16.76 mm	0.66 in	20	Male Pin	2.54 mm	0.1 in			2	Header Stackable (2)	All		Black	Through Hole Right Angle	Tin	Latch Lock/Eject Hooks Short	6.1 mm	0.24 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.32
		10	$ 3.92
		300	$ 3.03
		600	$ 2.94
		1200	$ 2.51
Newark	Each	1	$ 4.21
		10	$ 4.03
		25	$ 3.72
		50	$ 3.51
		100	$ 3.36
		250	$ 2.96
		500	$ 2.87
		1000	$ 2.44

Description

General part information

N3428 Series

The N3428-6302RB is a 20-way 0.100 x 0.100-inch Pak 100 4-wall Straight Header with long roll pin latch/ejector, gold-plated copper alloy contacts and through hole termination. This 3000 series header is glass filled polyester (PCT) insulated, suitable for reflow soldering using paste in hole techniques. This has military (with 3M's 3518 polarizing key) and centerbump polarization, mounting holes for securing header to board.
