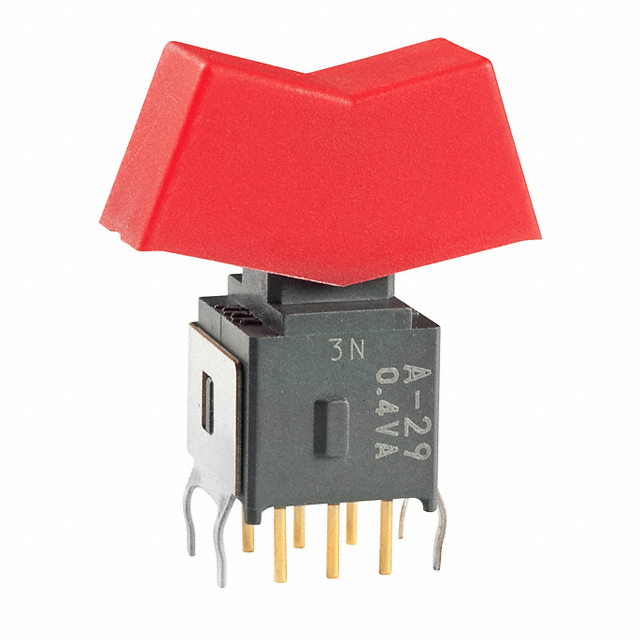

A29KB-CC
ActiveNKK Switches
DPDT 28V 28V PLUGIN ROCKER SWITCHES ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A29KB-CC
ActiveNKK Switches
DPDT 28V 28V PLUGIN ROCKER SWITCHES ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A29KB-CC |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | CSA, UL |
| Circuit | DPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Process Sealed |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
A29KB Series
Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole
