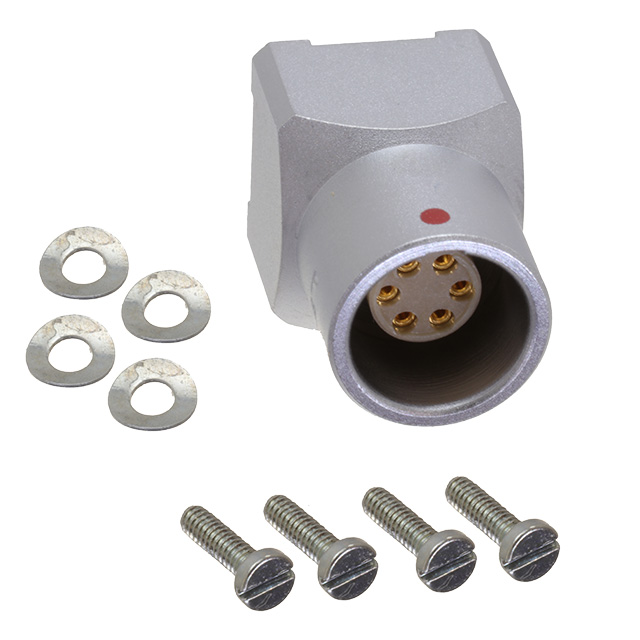

EZG.0B.306.CLN
ActiveLEMO
CONN RCPT FMALE 6POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZG.0B.306.CLN
ActiveLEMO
CONN RCPT FMALE 6POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EZG.0B.306.CLN |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Material | Bronze |
| Current Rating (Amps) | 2.5 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 306 |
| Shielding | Shielded |
| Termination | Solder |
EZG.0B Series
| Part | Primary Material | Connector Type | Contact Finish - Mating | Material Flammability Rating | Color | Shell Size - Insert | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Orientation | Termination | Number of Positions | Mounting Type | Insert Material | Ingress Protection | Fastening Type | Current Rating (Amps) | Shielding | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Metal | Receptacle Female Sockets | Gold | UL94 V-0 | Silver | 306 | Chrome | 59 Áin | 1.5 Ám | Brass | G | Solder | 6 | Through Hole | Polyetheretherketone (PEEK) | IP50 | Push-Pull | 2.5 A | Shielded | Bronze | -55 °C | 250 °C |
LEMO | Metal | Receptacle Female Sockets | Gold | UL94 V-0 | Silver | 303 | Chrome | 59 Áin | 1.5 Ám | Brass | G | Solder | Through Hole | Polyetheretherketone (PEEK) | IP50 | Push-Pull | 8 A | Shielded | Bronze | -55 °C | 250 °C | |
LEMO | Metal | Receptacle Female Sockets | Gold | UL94 V-0 | Silver | 309 | Chrome | 59 Áin | 1.5 Ám | Brass | G | Solder | 9 | Through Hole | Polyetheretherketone (PEEK) | IP50 | Push-Pull | 2 A | Shielded | Bronze | -55 °C | 250 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.18 | |
| 10 | $ 32.56 | |||
| 25 | $ 31.15 | |||
| 50 | $ 30.15 | |||
| 100 | $ 29.14 | |||
| 250 | $ 27.54 | |||
Description
General part information
EZG.0B Series
6 Position Circular Connector Receptacle, Female Sockets Solder
