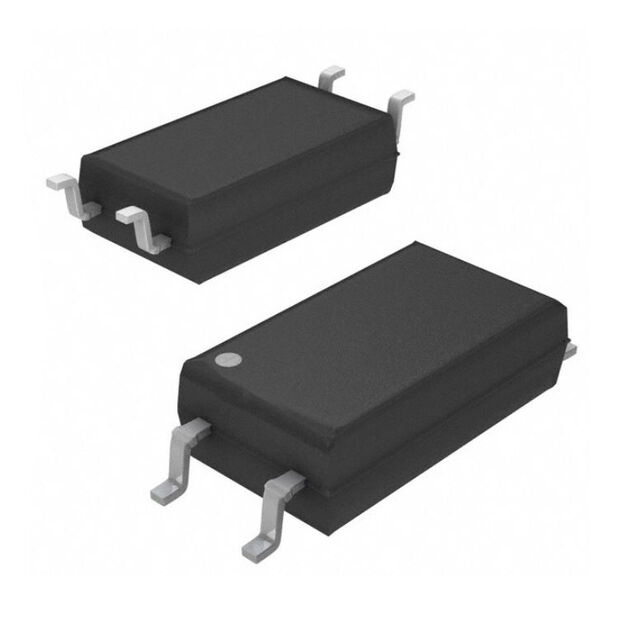

TLP383(BL-TPL,E
ActiveToshiba Semiconductor and Storage
OPTOISOLATOR 5KV 1CH TRANS 6-SO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLP383(BL-TPL,E
ActiveToshiba Semiconductor and Storage
OPTOISOLATOR 5KV 1CH TRANS 6-SO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP383(BL-TPL,E |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Max) [Max] | 600 % |
| Current Transfer Ratio (Min) [Min] | 200 % |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | 1.81 mOhm |
| Package / Case | 4 Lead, 0.173 in |
| Package / Case | 6-SOIC |
| Package / Case | 4.4 mm |
| Rise / Fall Time (Typ) [custom] | 3 µs |
| Rise / Fall Time (Typ) [custom] | 2 µs |
| Supplier Device Package | 6-SO, 4 Lead |
| Turn On / Turn Off Time (Typ) | 3 µs |
| Vce Saturation (Max) [Max] | 300 mV |
| Voltage - Forward (Vf) (Typ) | 1.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TLP383 Series
Optoisolator Transistor Output 5000Vrms 1 Channel 6-SO, 4 Lead
