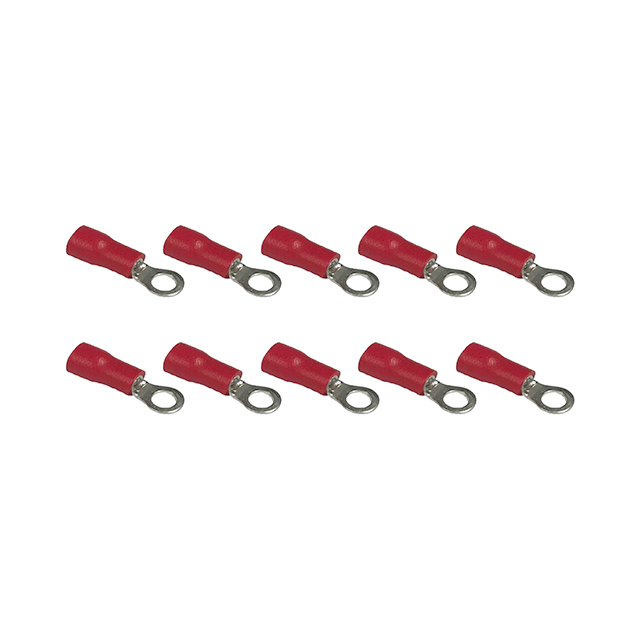

RVS1.25-4-10

Active

Remington Industries

RING TERMINALS, PVC INSULATED, 1

Search across all available documentation for this part.

Active

Remington Industries

RING TERMINALS, PVC INSULATED, 1

Technical Specifications

Parameters and characteristics for this part

Part	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Thickness	Thickness	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Mounting Type	Color	Insulation	Material - Insulation	Termination	Length - Overall	Length - Overall	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges
Remington Industries RVS1.25-3.5-10	Circular	22 AWG	16 AWG	6 Stud	0.03 in	0.76 mm	Copper	5.5 mm	0.217 in	0.689 in	17.5 mm	Tin	Free Hanging (In-Line)	Red	Insulated	Poly-Vinyl Chloride (PVC)	Crimp
Remington Industries RVS1.25-4-10	Circular	22 AWG	16 AWG		0.03 in	0.76 mm	Copper	6.6 mm	0.26 in			Tin	Free Hanging (In-Line)	Red	Insulated	Poly-Vinyl Chloride (PVC)	Crimp	0.764 in	19.41 mm	8 Stud
Remington Industries RVS1.25-4-100	Circular	22 AWG	16 AWG		0.03 in	0.76 mm	Copper	6.6 mm	0.26 in			Tin	Free Hanging (In-Line)	Red	Insulated	Poly-Vinyl Chloride (PVC)	Crimp	0.764 in	19.41 mm	8 Stud
Remington Industries RVS1.25-5-10	Circular	22 AWG	16 AWG	10 Stud	0.03 in	0.76 mm	Copper			0.819 in	20.8 mm	Tin	Free Hanging (In-Line)	Red	Insulated	Poly-Vinyl Chloride (PVC)	Crimp				8 mm	0.315 in
Remington Industries RVS1.25-3.5-100	Circular	22 AWG	16 AWG	6 Stud	0.03 in	0.76 mm	Copper	5.5 mm	0.217 in	0.689 in	17.5 mm	Tin	Free Hanging (In-Line)	Red	Insulated	Poly-Vinyl Chloride (PVC)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.19

General part information

Ring Terminal Connector 8 Stud Circular 16-22 AWG Crimp
