TDA8588AJ/N3,112

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS AB QUAD 87W 37DBS

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS AB QUAD 87W 37DBS

Technical Specifications

Parameters and characteristics for this part

Specification	TDA8588AJ/N3,112

Features	Mute, I2C, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	87 W, 4
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	4-Channel (Quad)

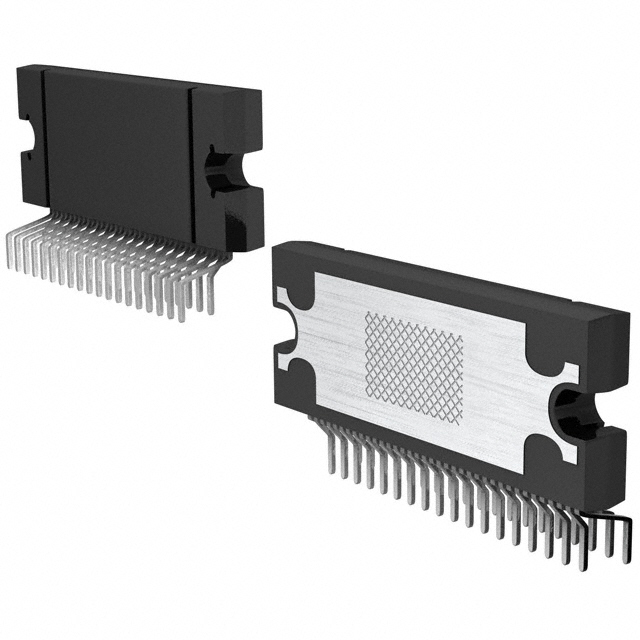

Package / Case	37-SSIP Formed Leads
Supplier Device Package	37-PDBS
Type	Class AB
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	8 V

Part	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Max Output Power x Channels @ Load
Freescale Semiconductor - NXP TDA8588AJ/N3,112	I2C Mute Short-Circuit and Thermal Protection Standby	8 V	18 V	37-PDBS	37-SSIP Formed Leads	4-Channel (Quad)	85 °C	-40 °C	Class AB	Through Hole	4 87 W
Freescale Semiconductor - NXP TDA8589J/N1,112	I2C Mute Short-Circuit and Thermal Protection Standby	8 V	18 V	37-PDBS	37-SSIP Formed Leads	4-Channel (Quad)	85 °C	-40 °C	Class AB	Through Hole
Freescale Semiconductor - NXP TDA8588J/N3,112	I2C Mute Short-Circuit and Thermal Protection Standby	8 V	18 V	37-PDBS	37-SSIP Formed Leads	4-Channel (Quad)	85 °C	-40 °C	Class AB	Through Hole	4 87 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 4-Channel (Quad) Class AB 37-PDBS
