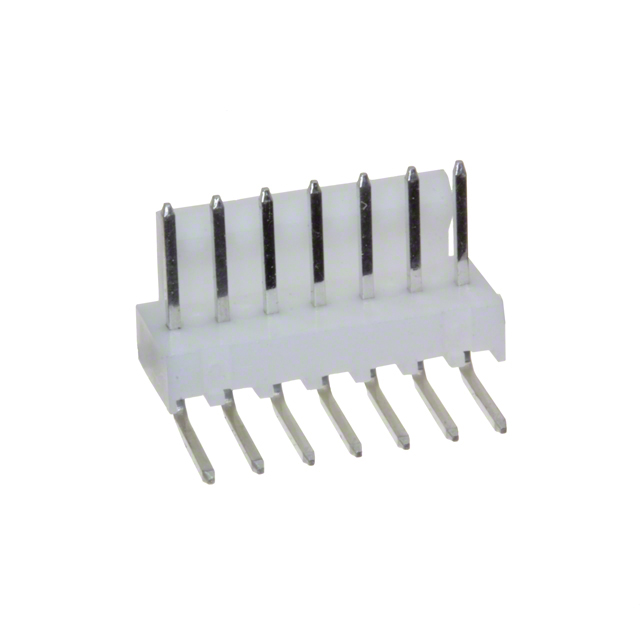

LHS-07-TRA

Active

Adam Tech

CONN HEADER R/A 7POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 7POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHS-07-TRA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.7 mm
Contact Length - Mating	0.264 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height [z]	6.4 mm
Insulation Height [z]	0.252 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Insulation Material	Material Flammability Rating	Connector Type	Contact Finish - Post	Termination	Contact Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Number of Rows	Insulation Color	Pitch - Mating	Pitch - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Contact Shape	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Current Rating (Amps)	Mounting Type	Style	Contact Length - Mating	Contact Length - Mating
Adam Tech LHS-07-TRA	Polyamide (PA66) Nylon 6/6	UL94 V-0	Header	Tin	Solder	Male Pin	Friction Lock	-25 °C	85 °C	Brass	7	1	White	0.1 in	2.54 mm	Shrouded - 1 Wall	0.13 in	3.3 mm	Square	250 VAC	6.4 mm	0.252 in	All	3 A	Through Hole Right Angle	Board to Cable/Wire	6.7 mm	0.264 in
