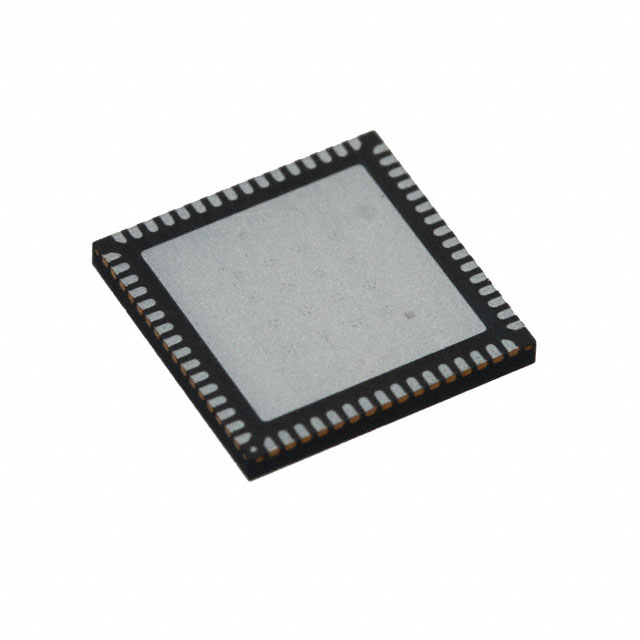

ISPPAC-CLK5410D-01SN64I

Obsolete

LATTICE SEMICONDUCTOR

IC BUFFER FANOUT 10OUTPUT 64QFNS

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC BUFFER FANOUT 10OUTPUT 64QFNS

Technical Specifications

Parameters and characteristics for this part

Specification	ISPPAC-CLK5410D-01SN64I

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Divider/Multiplier	Yes/No
Frequency - Max [Max]	400 MHz
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	HSTL, SSTL, LVDS, MLVDS, HCSL, LVPECL
Package / Case	64-VFQFN Exposed Pad
PLL	Yes with Bypass
Ratio - Input:Output [custom]	10
Ratio - Input:Output [custom]	2
Supplier Device Package	64-QFNS (9x9)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency - Max [Max]	Package / Case	Output	Supplier Device Package	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]	Divider/Multiplier	Mounting Type	PLL	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits
LATTICE SEMICONDUCTOR ISPPAC-CLK5410D-01SN64C	3.6 V	3 V	400 MHz	64-VFQFN Exposed Pad	HCSL HSTL LVDS LVPECL MLVDS SSTL	64-QFNS (9x9)	10	2	Yes/No	Surface Mount	Yes with Bypass	70 °C	0 °C	1
LATTICE SEMICONDUCTOR ISPPAC-CLK5410D-01SN64I	3.6 V	3 V	400 MHz	64-VFQFN Exposed Pad	HCSL HSTL LVDS LVPECL MLVDS SSTL	64-QFNS (9x9)	10	2	Yes/No	Surface Mount	Yes with Bypass	85 °C	-40 °C	1
LATTICE SEMICONDUCTOR ISPPAC-CLK5406D-01SN48I	3.6 V	3 V	400 MHz	48-VFQFN Exposed Pad	HCSL HSTL LVDS LVPECL MLVDS SSTL	48-QFNS (7x7)	6	2	Yes/No	Surface Mount	Yes with Bypass	85 °C	-40 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC 400MHz 1 64-VFQFN Exposed Pad
