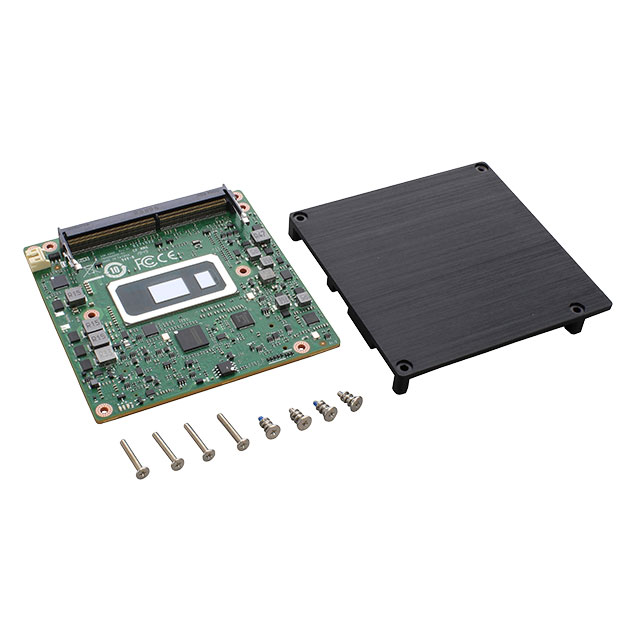

SOM-6882C5-S6A1

Active

Advantech Corp

SBC 1.6GHZ 4 CORE 64GB/- RAM

Deep-Dive with AI

Search across all available documentation for this part.

SOM-6882C5-S6A1

Active

Advantech Corp

SBC 1.6GHZ 4 CORE 64GB/- RAM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SOM-6882C5-S6A1

Cooling Type	Fan
Core Processor	Intel Core i5-8365UE
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	PCIe, SMBus, LPC, I2C
Form Factor	COM Express R3.0 Compact Module, Type 6
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	15 W
RAM Capacity/Installed	-
RAM Capacity/Installed	64 GB
Size / Dimension [x]	3.74 "
Size / Dimension [x]	94.99 mm
Size / Dimension [y]	3.74 "
Size / Dimension [y]	94.99 mm
Speed	1.6 GHz
Storage Interface	SATA 3.0 (3)
USB	USB 3.1 (3), USB 2.0 (4)
Video Outputs	LVDS, DP, DVI, LCD, HDMI
Watchdog Timer	True

SOM-6882 Series

Part	Ethernet	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Video Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Storage Interface	RAM Capacity/Installed	Expansion Site/Bus	Number of Cores	Power (Watts)	Cooling Type	Speed	USB	Core Processor	Form Factor	Ethernet	RAM Capacity/Installed	Digital I/O Lines
Advantech Corp SOM-6882C3A-U2A1	10 Mbps 100 Mbps 1000 Mbps GbE	3.74 "	3.74 "	94.99 mm	94.99 mm	eDP HDMI LCD LVDS VGA	60 °C	0 °C	eMMC SATA 3.0 (2)	0 GB 64 GB	CAN GPIO I2C LCD LVDS PCIe SATA SMBus SPI	2	59.721 W	Fan	2.2 GHz	USB 2.0 (4) USB 3.2 (4)	Intel Core i3-8145UE	COM Express R3.0 Compact Module Type 6
Advantech Corp SOM-6882C3-U2A1		3.74 "	3.74 "	94.99 mm	94.99 mm	DP DVI HDMI LCD LVDS	60 °C	0 °C	SATA 3.0 (3)	64 GB	I2C LPC PCIe SMBus	2	15 W	Fan	2.2 GHz	USB 2.0 (4) USB 3.1 (3)	Intel Core i3-8145UE	COM Express R3.0 Compact Module Type 6	10 Mbps 100 Mbps 1000 Mbps	-	8
Advantech Corp SOM-6882C5-S6A1		3.74 "	3.74 "	94.99 mm	94.99 mm	DP DVI HDMI LCD LVDS	60 °C	0 °C	SATA 3.0 (3)	64 GB	I2C LPC PCIe SMBus	4	15 W	Fan	1.6 GHz	USB 2.0 (4) USB 3.1 (3)	Intel Core i5-8365UE	COM Express R3.0 Compact Module Type 6	10 Mbps 100 Mbps 1000 Mbps	-	8
Advantech Corp SOM-6882C5X-S6A1	10 Mbps 100 Mbps 1000 Mbps GbE	3.74 "	3.74 "	94.99 mm	94.99 mm	eDP HDMI LCD LVDS VGA	85 °C	-40 °C	eMMC SATA 3.0 (2)	0 GB 64 GB	CAN GPIO I2C LCD LVDS PCIe SATA SMBus SPI	4	59.721 W	Fan	1.6 GHz	USB 2.0 (4) USB 3.2 (4)	Intel Core i5-8365UE	COM Express R3.0 Compact Module Type 6
Advantech Corp SOM-6882C3X-U2A1	10 Mbps 100 Mbps 1000 Mbps GbE	3.74 "	3.74 "	94.99 mm	94.99 mm	eDP HDMI LCD LVDS VGA	85 °C	-40 °C	eMMC SATA 3.0 (2)	0 GB 64 GB	CAN GPIO I2C LCD LVDS PCIe SATA SMBus SPI	2	59.721 W	Fan	2.2 GHz	USB 2.0 (4) USB 3.2 (4)	Intel Core i3-8145UE	COM Express R3.0 Compact Module Type 6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 989.10

Description

General part information

SOM-6882 Series

Single Board Computer 1.6GHz 4 Core 64GB/- RAM Intel Core i5-8365UE

Documents

Technical documentation and resources

No documents available
