1650RA

Active

Hammond Manufacturing

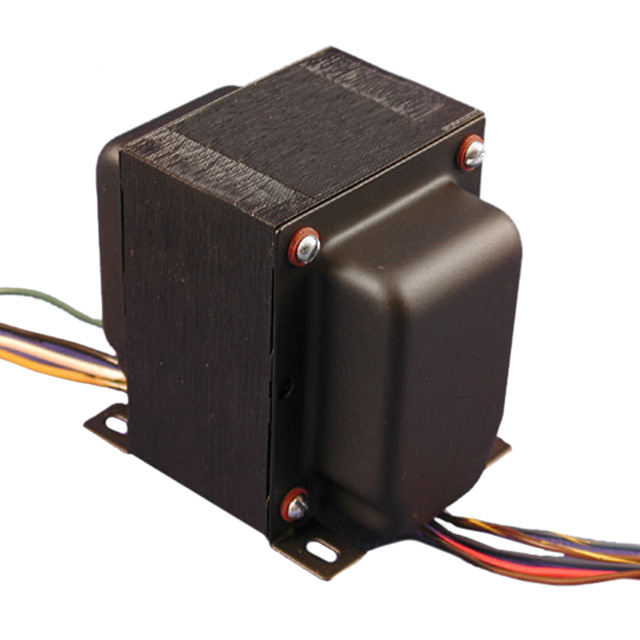

XFMR 5KCT / 4, 8, 16 CHAS MNT

Search across all available documentation for this part.

Active

Hammond Manufacturing

XFMR 5KCT / 4, 8, 16 CHAS MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1650RA

DC Resistance (DCR) - Primary	47.43 Ohm, 54.65 Ohm
DC Resistance (DCR) - Secondary [custom]	333 mOhm, 343 mOhm, 232 mOhm
Frequency Range [Max]	30 kHz
Frequency Range [Min]	30 Hz
Frequency Response	1 dB
Height - Seated (Max) [Max] [z]	115.82 mm
Height - Seated (Max) [Max] [z]	4.56 in
Impedance - Primary (Ohms)	5kCT
Impedance - Secondary (Ohms)	16 Ohms, 8 Ohms, 4 Ohms
Mounting Type	Chassis Mount
Power Level	100 W
Size / Dimension [x]	4.25 in
Size / Dimension [x]	107.95 mm
Size / Dimension [y]	3.75 "
Size / Dimension [y]	95.25 mm
Termination Style	Wire Leads
Transformer Type	Push-Pull Audiophile, Ultra-Linear - Tube Output
Voltage - Isolation	3535 VDC
Weight	5.4 kg
Weight	12 lbs

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power Level	Termination Style	Mounting Type	Weight	Weight	DC Resistance (DCR) - Primary	Frequency Response	DC Resistance (DCR) - Secondary [custom]	Impedance - Secondary (Ohms)	Voltage - Isolation	Transformer Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Impedance - Primary (Ohms)	Frequency Range [Max]	Frequency Range [Min]
Hammond Manufacturing 1650RA	115.82 mm	4.56 in	100 W	Wire Leads	Chassis Mount	5.4 kg	12 lbs	47.43 Ohm 54.65 Ohm	1 dB	232 mOhm 333 mOhm 343 mOhm	4 Ohms 8 Ohms 16 Ohms	3535 VDC	Push-Pull Audiophile Ultra-Linear - Tube Output	4.25 in	107.95 mm	3.75 "	95.25 mm	5kCT	30 kHz	30 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5kCT Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 30Hz ~ 30kHz Chassis Mount
