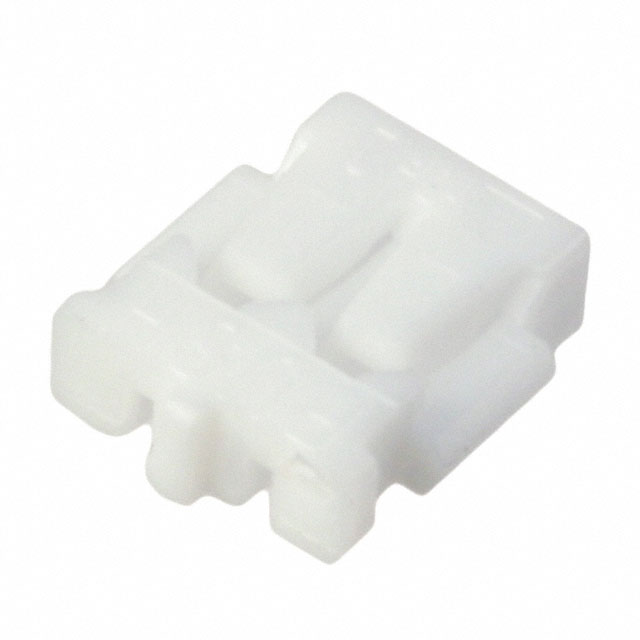

ACHR-02V-S

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 1.20MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 1.20MM

Technical Specifications

Parameters and characteristics for this part

Specification	ACHR-02V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	1.2 mm
Pitch [x]	0.047 in

Part	Contact Termination	Note	Connector Type	Color	Insulation Material	Number of Positions	Contact Type	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. ACHR-02V-S	Crimp	Contacts Not Included	Receptacle	Natural	Polybutylene Terephthalate (PBT)	2	Female Socket	1	1.2 mm	0.047 in	Free Hanging (In-Line)	-25 °C	85 °C
JST Sales America Inc. ACHR-02V-K	Crimp	Contacts Not Included	Receptacle	Black	Polybutylene Terephthalate (PBT)	2	Female Socket	1	1.2 mm	0.047 in	Free Hanging (In-Line)	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Natural 0.047" (1.20mm)
