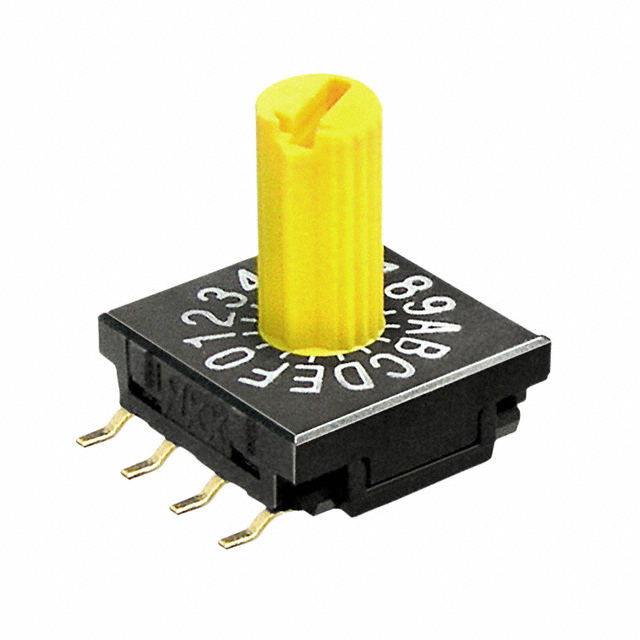

FR02KC16P

Active

NKK Switches

10MM ULTRA-THIN SMT DIP ROTARY

Search across all available documentation for this part.

Active

NKK Switches

10MM ULTRA-THIN SMT DIP ROTARY

Technical Specifications

Parameters and characteristics for this part

Specification	FR02KC16P

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	Hexadecimal Complement
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Surface Mount
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	False

Part	Body Material	Mounting Type	Length	Length	Pitch [x]	Pitch	Pitch [x]	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Circuit	Voltage Rating	Current Rating (Amps)	Washable	Actuator Type	Number of Positions	Electrical Life	Actuator Level	Termination Style
NKK Switches FR02KC16P	Polyamide (PA) Nylon Glass Filled	Surface Mount	10 mm	0.394 in	0.1 in	Full	2.54 mm	Copper Alloy	Gold	-25 °C	85 °C	10000 Steps	Hexadecimal Complement	5 V	100 mA		Rotary with Shaft	16	10000 Cycles	Raised	Gull Wing
NKK Switches FR02KC16P-S	Polyamide (PA) Nylon Glass Filled	Surface Mount	10 mm	0.394 in	0.1 in	Full	2.54 mm	Copper Alloy	Gold	-25 °C	85 °C	10000 Steps	Hexadecimal Complement	5 V	100 mA		Rotary with Shaft	16	10000 Cycles	Raised	Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Hexadecimal Complement 16 Position Surface Mount Rotary with Shaft Actuator 100mA 5VDC
