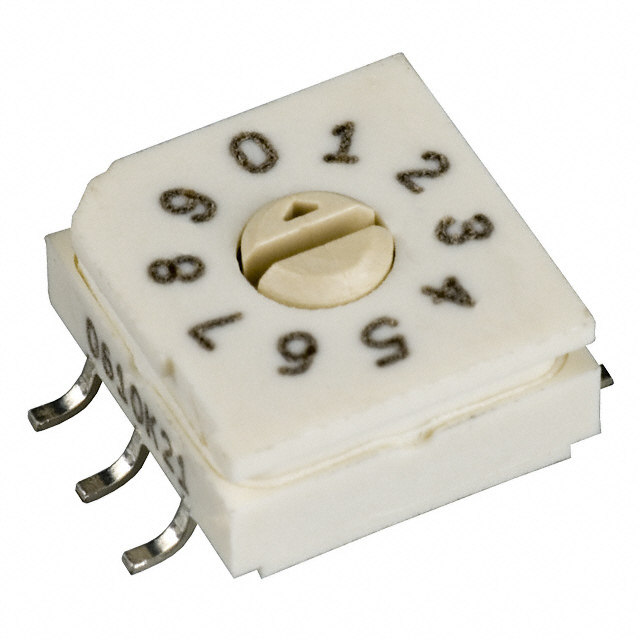

94HAB10WT

Active

Grayhill Inc.

SWITCH ROTARY DIP BCD 0.1A 50V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY DIP BCD 0.1A 50V

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch	Pitch [x]	Body Material	Mounting Type	Length	Length	Termination Style	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Positions	Height Above Board	Height Above Board	Circuit	Actuator Type	Mechanical Life	Current Rating (Amps)	Features	Contact Finish	Actuator Level	Height Above Board [z]	Height Above Board [z]	Length [x]
Grayhill Inc. 94HAB10WT	0.1 in	Full	2.54 mm	Plastic	Surface Mount	0.39 "	9.91 mm	Gull Wing	Copper Alloy	85 °C	-40 °C	50 V	10	0.225 in	5.72 mm	BCD	Rotary for Tool	10000 Steps	100 mA	Sealed	Gold	Flush Recessed
Grayhill Inc. 94HAB10RAT	0.1 in	Full	2.54 mm	Plastic	Through Hole Right Angle		10.92 mm	PC Pin	Copper Alloy	85 °C	-40 °C	50 V	10			BCD	Rotary for Tool	10000 Steps	100 mA	Sealed	Gold	Flush Recessed	10.16 mm	0.4 "	0.43 in
Grayhill Inc. 94HAB10JT	0.1 in	Full	2.54 mm	Plastic	Surface Mount	0.39 "	9.91 mm	J Lead	Copper Alloy	85 °C	-40 °C	50 V	10	0.25 in	6.35 mm	BCD	Rotary for Tool	10000 Steps	100 mA	Sealed	Gold	Flush Recessed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 100mA 50VDC
