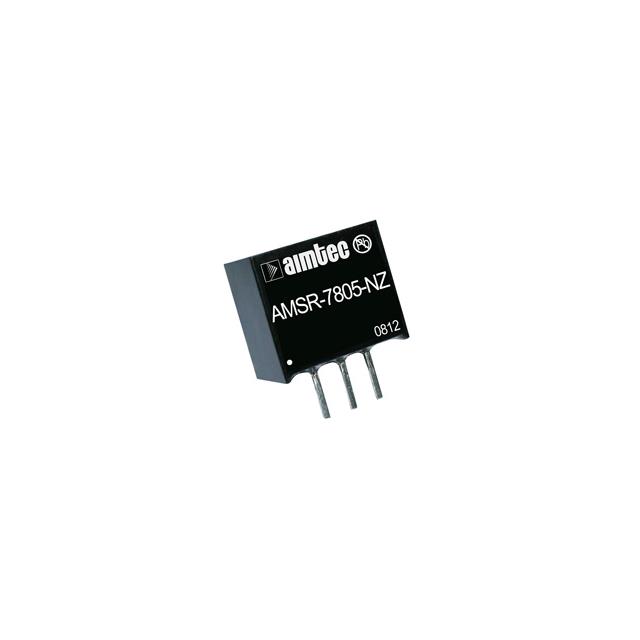

AMSR-7805-NZ

Active

aimtec

DC DC CONVERTER 5V 2.5W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 5V 2.5W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Applications	Approval Agency	Number of Outputs	Voltage - Output 1	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Type	Voltage - Input (Min) [Min]
aimtec AMSR-7815Z	95 %	7.5 W	11.7 mm	0.29 "	7.5 mm	0.46 in	10.2 mm	0.4 "	ITE (Commercial)	CE	1	15 V	Through Hole	34 V	3-SIP Module	85 °C	-40 °C	500 mA	Non-Isolated PoL Module	18 V
aimtec AMSR-782.5Z	76 %	1.25 W	11.7 mm	0.29 "	7.5 mm	0.46 in	10.2 mm	0.4 "	ITE (Commercial)	CE	1	2.5 V	Through Hole	34 V	3-SIP Module	85 °C	-40 °C	500 mA	Non-Isolated PoL Module	4.75 V
aimtec AMSR-7805-NZ	86 %		11.5 mm	0.3 "	7.6 mm	0.45 in	10.2 mm	0.4 "	ITE (Commercial)	CE	1	5 V	Through Hole	32 V	3-SIP Module	85 °C	-40 °C	500 mA	Non-Isolated PoL Module	6.5 V
aimtec AMSR-786.5Z	88 %	3.25 W	11.7 mm	0.29 "	7.5 mm	0.46 in	10.2 mm	0.4 "	ITE (Commercial)	CE	1	6.5 V	Through Hole	34 V	3-SIP Module	85 °C	-40 °C	500 mA	Non-Isolated PoL Module	8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 5V 500mA 6.5V - 32V Input
