11200030800

Active

HARTING Technology Group

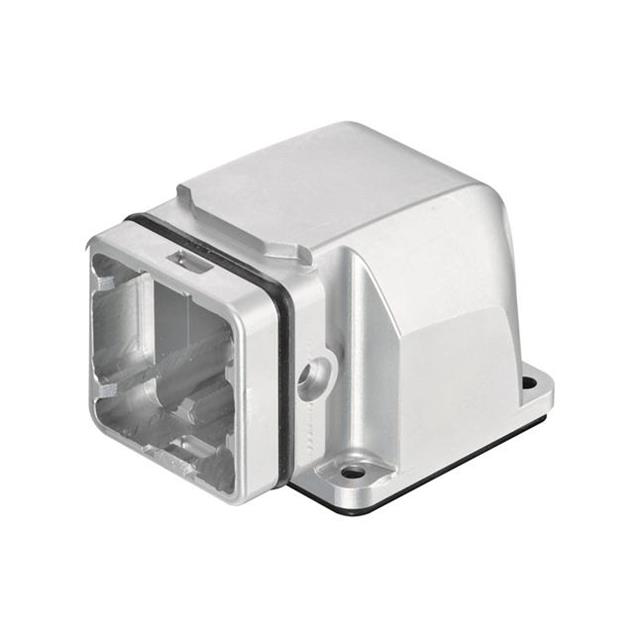

HEAVY DUTY CONNECTOR, RIGHT ANGLE, BASE, BULKHEAD MOUNT, ZINC BODY, SCREW, 10

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, RIGHT ANGLE, BASE, BULKHEAD MOUNT, ZINC BODY, SCREW, 10

Technical Specifications

Parameters and characteristics for this part

Specification	11200030800

Connector Type	Base - Panel Mount 90°
Housing Finish	Zinc Passivation
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Push Button Snap Lock on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Style	Bottom Entry

Part	Style	Housing Material	Housing Finish	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type
HARTING Technology Group 11200030800	Bottom Entry	Zinc Die Cast	Zinc Passivation	Push Button Snap Lock on Hood	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Base - Panel Mount 90°

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount 90° Connector Bottom Entry IP65 - Dust Tight, Water Resistant
