11LC040T-I/MS

Active

Microchip Technology

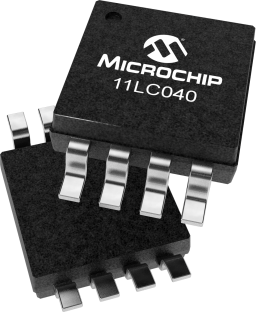

4K, 512 X 8 2.5V SERIAL EE, IND 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN 11AAXXX-1-Kbit to 16-Kbit UNI/O Serial EEPROM Family Data Sheet +8

11LC040T-I/MS

Active

Microchip Technology

4K, 512 X 8 2.5V SERIAL EE, IND 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsProduct Change Notice EN 11AAXXX-1-Kbit to 16-Kbit UNI/O Serial EEPROM Family Data Sheet +8

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11LC040T-I/MS

Clock Frequency	100 kHz
Memory Format	EEPROM
Memory Interface	Single Wire
Memory Organization [custom]	512
Memory Organization [custom]	8
Memory Size	4 Kbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-MSOP, 8-TSSOP
Package / Case	3 mm
Package / Case [custom]	0.118 in
Supplier Device Package	8-MSOP
Technology	EEPROM
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.5 V
Write Cycle Time - Word, Page	5 ms

11LC040 Series

2.5V UNI/O® Serial EEPROM with 4Kb of memory

Part	Memory Interface	Memory Size	Memory Organization [custom]	Memory Organization [custom]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Type	Operating Temperature [Min]	Operating Temperature [Max]	Write Cycle Time - Word, Page	Technology	Clock Frequency	Mounting Type	Supplier Device Package	Memory Format	Package / Case [y]	Package / Case [x]	Package / Case [custom]	Package / Case
Microchip Technology 11LC040T-E/TT	Single Wire	4 Kbit	512	8	SC-59 SOT-23-3 TO-236-3	2.5 V	5.5 V	Non-Volatile	-40 °C	125 °C	5 ms	EEPROM	100 kHz	Surface Mount	SOT-23-3	EEPROM
Microchip Technology 11LC040T-I/SN	Single Wire	4 Kbit	512	8	8-SOIC	2.5 V	5.5 V	Non-Volatile	-40 °C	85 °C	5 ms	EEPROM	100 kHz	Surface Mount	8-SOIC	EEPROM	3.9 mm	0.154 in
Microchip Technology 11LC040-I/MS	Single Wire	4 Kbit	512	8	8-MSOP 8-TSSOP	2.5 V	5.5 V	Non-Volatile	-40 °C	85 °C	5 ms	EEPROM	100 kHz	Surface Mount	8-MSOP	EEPROM			0.118 in	3 mm
Microchip Technology 11LC040T-E/MS	Single Wire	4 Kbit	512	8	8-MSOP 8-TSSOP	2.5 V	5.5 V	Non-Volatile	-40 °C	125 °C	5 ms	EEPROM	100 kHz	Surface Mount	8-MSOP	EEPROM			0.118 in	3 mm
Microchip Technology 11LC040T-I/MS	Single Wire	4 Kbit	512	8	8-MSOP 8-TSSOP	2.5 V	5.5 V	Non-Volatile	-40 °C	85 °C	5 ms	EEPROM	100 kHz	Surface Mount	8-MSOP	EEPROM			0.118 in	3 mm
Microchip Technology 11LC040T-E/MNY	Single Wire	4 Kbit	512	8	8-WFDFN Exposed Pad	2.5 V	5.5 V	Non-Volatile	-40 °C	125 °C	5 ms	EEPROM	100 kHz	Surface Mount	8-TDFN (2x3)	EEPROM
Microchip Technology 11LC040-I/SN	Single Wire	4 Kbit	512	8	8-SOIC	2.5 V	5.5 V	Non-Volatile	-40 °C	85 °C	5 ms	EEPROM	100 kHz	Surface Mount	8-SOIC	EEPROM	3.9 mm	0.154 in
Microchip Technology 11LC040T-E/SN	Single Wire	4 Kbit	512	8	8-SOIC	2.5 V	5.5 V	Non-Volatile	-40 °C	125 °C	5 ms	EEPROM	100 kHz	Surface Mount	8-SOIC	EEPROM	3.9 mm	0.154 in
Microchip Technology 11LC040T-I/TT	Single Wire	4 Kbit	512	8	SC-59 SOT-23-3 TO-236-3	2.5 V	5.5 V	Non-Volatile	-40 °C	85 °C	5 ms	EEPROM	100 kHz	Surface Mount	SOT-23-3	EEPROM
Microchip Technology 11LC040-E/SN	Single Wire	4 Kbit	512	8	8-SOIC	2.5 V	5.5 V	Non-Volatile	-40 °C	125 °C	5 ms	EEPROM	100 kHz	Surface Mount	8-SOIC	EEPROM	3.9 mm	0.154 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.34
Microchip Direct	T/R	1	$ 0.35
		100	$ 0.33
		1000	$ 0.30
		5000	$ 0.29
Newark	Each (Supplied on Full Reel)	1	$ 0.38

Description

General part information

11LC040 Series

Need more microcontroller pins for new features? Want to stay with a low pin-count microcontroller rather than switching to a more expensive one? Microchip’s UNI/O® bus serial EEPROM uses only one connection to the host microcontroller. This compares to two or three pins for I2C and three to six pins for Microwire or SPI buses. This proprietary bus offers advanced features like a status register and write protection on demand, along with all I/O, memory array and command functions through a single pin.
