1055258-1

Obsolete

TE Application Tooling

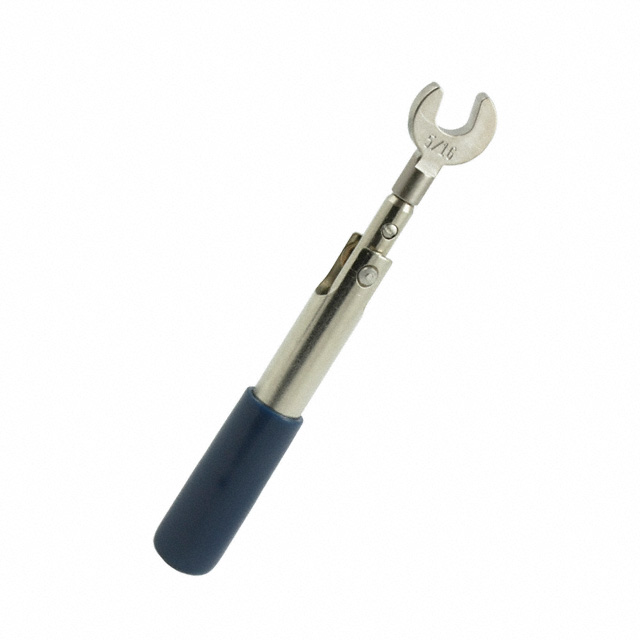

WRENCH SMA TORQUE 5/16" 4.49"

Search across all available documentation for this part.

Obsolete

TE Application Tooling

WRENCH SMA TORQUE 5/16" 4.49"

Technical Specifications

Parameters and characteristics for this part

Specification	1055258-1

End - Size	0.3125 in
Features	Protective Cover, Interchangeable Head
Length [x]	4.49 in
Length [x]	114 mm
Measurement Type	SAE (Standard)
Tool Type	SMA Torque Wrench
Torque	0.9 Nm
Torque	Fixed
Torque	8 in-lbs
Weight	136.08 g
Weight	0.3 lb

Part	For Use With/Related Products	Accessory Type	Tool Type	Usage	Measurement Type	Weight	Weight	Length [x]	Length [x]	Torque	Torque	Torque	Features	End - Size
TE Application Tooling 1055827-1	Connectors	Collet
TE Application Tooling 1055471-1
TE Application Tooling 1055446-1	SMA Connectors	Locator Tool
TE Application Tooling 1055423-1
TE Application Tooling 1055470-1
TE Application Tooling 1055478-1	Coaxial Cables		Cable Bender
TE Application Tooling 1055458-1	Coaxial RF - SSMA		Insertion Tool
TE Application Tooling 1055476-1	BNC Coaxial RF TNC	Locator
TE Application Tooling 1055468-1				Coaxial Connectors
TE Application Tooling 1055258-1			SMA Torque Wrench		SAE (Standard)	136.08 g	0.3 lb	4.49 in	114 mm	0.9 Nm	Fixed	8 in-lbs	Interchangeable Head Protective Cover	0.3125 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Torque Wrench Wrench 5/16" 4.49" (114.0mm) Length
