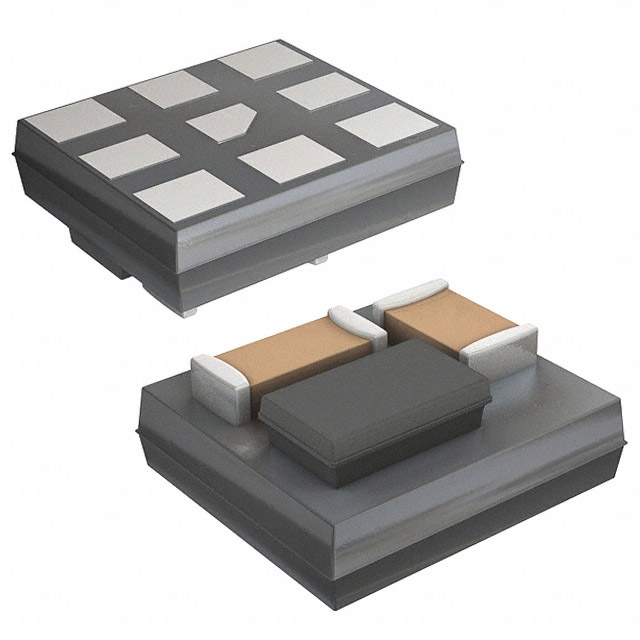

LXDC3EP33F-204

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V

Deep-Dive with AI

Search across all available documentation for this part.

LXDC3EP33F-204

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LXDC3EP33F-204

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1 A
Efficiency	94 %
Features	Remote On/Off, UVLO, OCP, OTP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Package / Case	9-SMD Module
Size / Dimension [x]	0.14 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.13 in
Size / Dimension [y]	3.2 mm
Size / Dimension [z]	0.05 in
Size / Dimension [z]	1.3 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4 V
Voltage - Output 1	3.3 V

LXDC3EP Series

Part	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1	Control Features	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Voltage - Input (Min) [Min]	Type	Package / Case	Applications	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)
Murata Power Solutions Inc. LXDC3EP18F-264	5.5 V	92 %	1.8 V	Active High Enable	Surface Mount	0.13 in	0.05 in	1.3 mm	0.14 "	3.2 mm	3.5 mm	OCP OTP Remote On/Off UVLO	2.5 V	Non-Isolated PoL Module	9-SMD Module	ITE (Commercial)	1	1 A	-30 ░C	85 °C
Murata Power Solutions Inc. LXDC3EP33F-204	5.5 V	94 %	3.3 V		Surface Mount	0.13 in	0.05 in	1.3 mm	0.14 "	3.2 mm	3.5 mm	OCP OTP Remote On/Off UVLO	4 V	Non-Isolated PoL Module	9-SMD Module	ITE (Commercial)	1	1 A	-30 ░C	85 °C
Murata Power Solutions Inc. LXDC3EP12A-104	5.5 V	88 %	1.2 V		Surface Mount	0.13 in	0.05 in	1.3 mm	0.14 "	3.2 mm	3.5 mm	OCP UVLO	2.5 V	Non-Isolated PoL Module	9-SMD Module	ITE (Commercial)	1	1 A	-30 ░C	85 °C	3 W
Murata Power Solutions Inc. LXDC3EP25A-109	5.5 V	94 %	2.5 V		Surface Mount	0.13 in	0.05 in	1.3 mm	0.14 "	3.2 mm	3.5 mm	OCP UVLO	3 V	Non-Isolated PoL Module	9-SMD Module	ITE (Commercial)	1	1 A	-30 ░C	85 °C	3 W
Murata Power Solutions Inc. LXDC3EP15F-263	5.5 V	90 %	1.5 V		Surface Mount	0.13 in	0.05 in	1.3 mm	0.14 "	3.2 mm	3.5 mm	OCP OTP Remote On/Off UVLO	2.5 V	Non-Isolated PoL Module	9-SMD Module	ITE (Commercial)	1	1 A	-30 ░C	85 °C
Murata Power Solutions Inc. LXDC3EP33A-107	5.5 V	94 %	3.3 V		Surface Mount	0.13 in	0.05 in	1.3 mm	0.14 "	3.2 mm	3.5 mm	OCP UVLO	4 V	Non-Isolated PoL Module	9-SMD Module	ITE (Commercial)	1	1 A	-30 ░C	85 °C	3 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LXDC3EP Series

Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1A 4V - 5.5V Input
