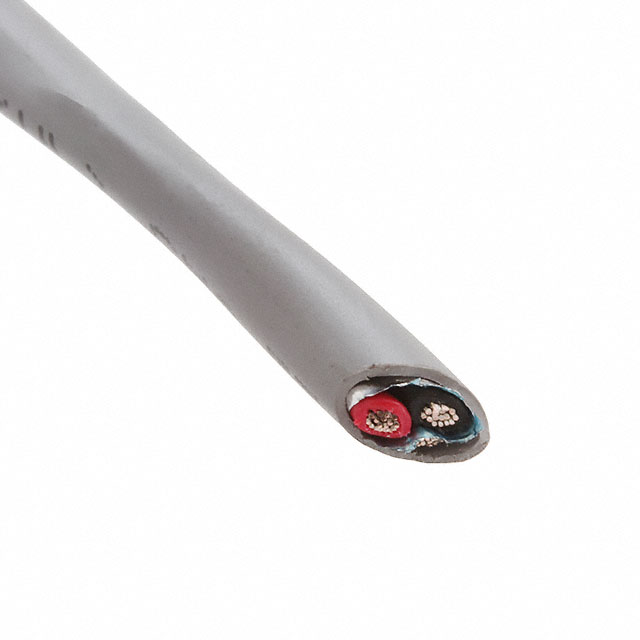

M3232 SL002

Active

ALPHA WIRE

CABLE 2CON 20AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2CON 20AWG SLATE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M3232 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.187 in
Jacket (Insulation) Diameter [diameter]	4.75 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	20 AWG

Part	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Number of Conductors	Jacket Color	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Shield Type	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Insulation	Jacket (Insulation) Material	Features
ALPHA WIRE M3232 SL002	Aluminum	28	7	100 %	2	Slate	Multi-Conductor	-20 C	80 C	300 V	0.02 in	0.508 mm	Copper Tinned	Foil	500 '	152.4 m	0.187 in	4.75 mm	20 AWG	Polyethylene (PE)	Poly-Vinyl Chloride (PVC)	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.50

General part information

2 Conductor Multi-Conductor Cable Slate 20 AWG Foil 500.0' (152.4m)
