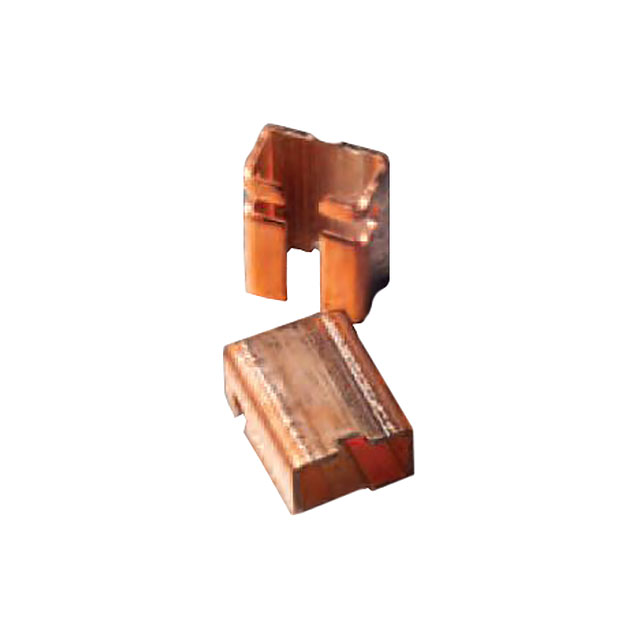

PSG4NTEBL500F
ActiveKOA Speer Electronics, Inc.
RES 500 UOHM 1% 10W NONSTANDARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSG4NTEBL500F
ActiveKOA Speer Electronics, Inc.
RES 500 UOHM 1% 10W NONSTANDARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSG4NTEBL500F |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Height - Seated (Max) [Max] | 0.128 in |
| Height - Seated (Max) [Max] | 3.25 mm |
| Number of Terminations | 4 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Nonstandard |
| Power (Watts) | 10 W |
| Ratings | AEC-Q200 |
| Resistance | 0.5 mOhms |
| Size / Dimension [x] | 6.9 mm |
| Size / Dimension [x] | 0.272 in |
| Size / Dimension [y] | 6.6 mm |
| Size / Dimension [y] | 0.26 " |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.72 | |
| 10 | $ 2.83 | |||
| 25 | $ 2.34 | |||
| 50 | $ 2.05 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.53 | |||
| 500 | $ 1.38 | |||
| Digi-Reel® | 1 | $ 4.72 | ||
| 10 | $ 2.83 | |||
| 25 | $ 2.34 | |||
| 50 | $ 2.05 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.53 | |||
| 500 | $ 1.38 | |||
| Tape & Reel (TR) | 1500 | $ 1.38 | ||
Description
General part information
PSG4NT Series
0.5 mOhms ±1% 10W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
