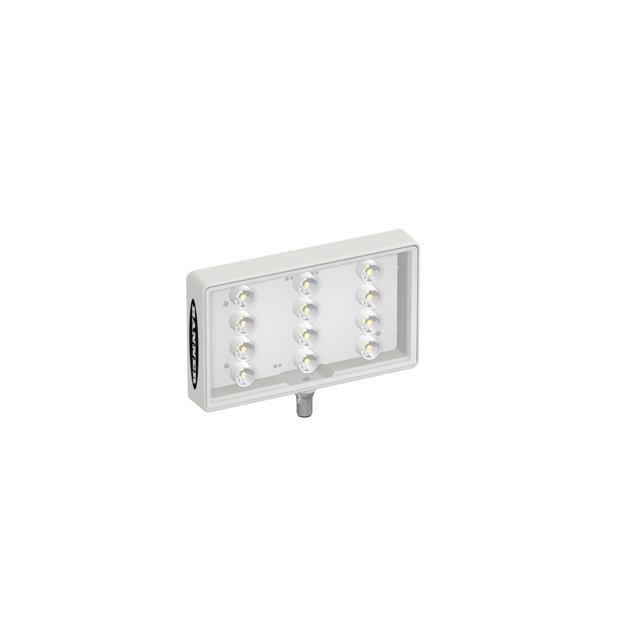

WLAW105X180L11Q
ObsoleteBANNER ENGINEERING
LED LIGHT BAR, COOL WHITE, 550 LM, 9.6 W, 30 VDC, 105.1 MM, IP69K
Deep-Dive with AI
Search across all available documentation for this part.
WLAW105X180L11Q
ObsoleteBANNER ENGINEERING
LED LIGHT BAR, COOL WHITE, 550 LM, 9.6 W, 30 VDC, 105.1 MM, IP69K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WLAW105X180L11Q |
|---|---|
| Approval Agency | cULus, CE |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Illumination Color | White, Cool |
| Ingress Protection | IP69K, IP67 |
| Length | 4.13 " |
| Length | 105 mm |
| Lens Type | Flat, Clear |
| Luminous Flux | 550 lm |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Profile (W x H) [y] | 7.09 in |
| Profile (W x H) [y] | 180 mm |
| Profile (W x H) [z] | 25.8 mm |
| Profile (W x H) [z] | 1.02 in |
| Termination Style | Connector (M12) |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 377.71 | |
| 3 | $ 370.65 | |||
| 5 | $ 360.06 | |||
Description
General part information
WLAW105 Series
LED LIGHT BAR, COOL WHITE, 550 LM, 9.6 W, 30 VDC, 105.1 MM, IP69K
