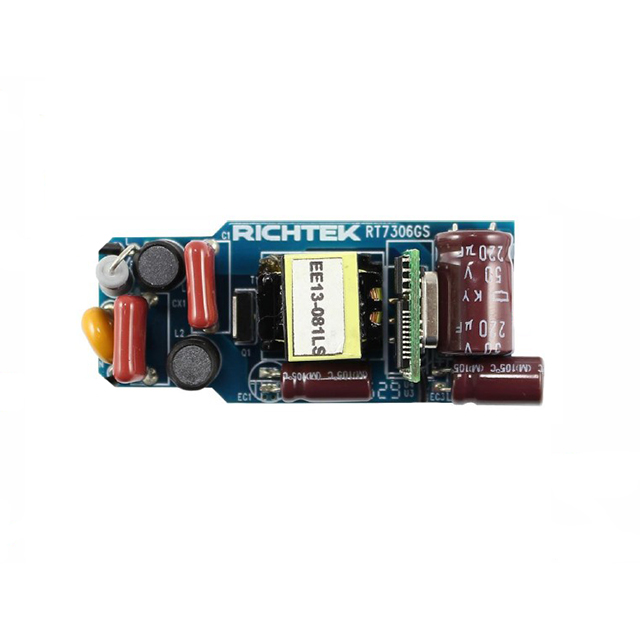

EVB_RT7306+RFID

Active

Richtek USA Inc.

EVAL MODULE FOR RT7306+RFID

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT7306+RFID

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Outputs and Type	Utilized IC / Part	Features	Dimming	Mounting Type	Supplier Device Package	Voltage - Supply (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Type	Applications	Voltage - Supply (Max) [Max]	Topology	Number of Outputs
Richtek USA Inc. EVB_RT7306+RFID	90 VAC	264 VAC	Board(s)	1 Isolated Output	RT7306	Dimmable
Richtek USA Inc. RT7306DGS							Analog	Surface Mount	8-SOP	11 V	-40 °C	125 ¯C	8-SOIC	3.9 mm	0.154 in	AC DC Offline Switcher	Lighting	34 V	Flyback Step-Down (Buck) Step-Up (Boost)	1
Richtek USA Inc. RT7306GS							Analog	Surface Mount	8-SOP	11 V	-40 °C	125 ¯C	8-SOIC	3.9 mm	0.154 in	AC DC Offline Switcher	Lighting	34 V	Flyback Step-Down (Buck) Step-Up (Boost)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.62

General part information

RT7306 - 1 Isolated Output Dimmable LED Driver Evaluation Board
