0901430050

Active

Molex

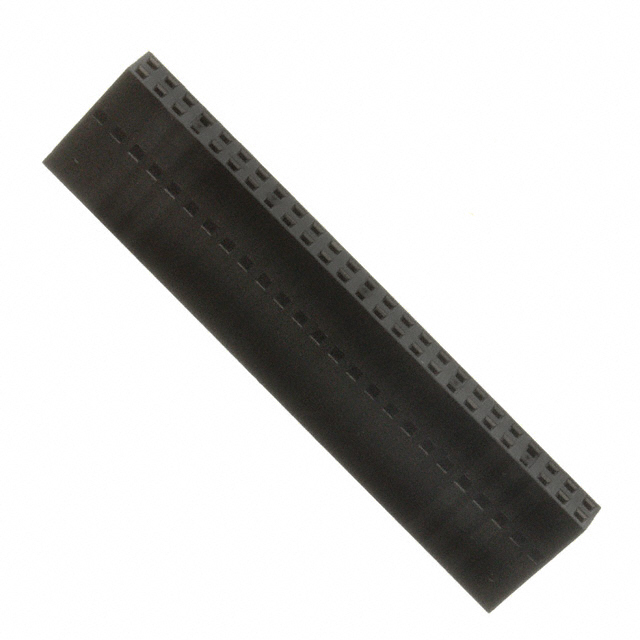

CONN HOUSING F 50 POS 2.54MM CRIMP ST CABLE MOUNT BLACK C-GRID III™ BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0901430050

Active

Molex

CONN HOUSING F 50 POS 2.54MM CRIMP ST CABLE MOUNT BLACK C-GRID III™ BAG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0901430050

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyphenylene Oxide (PPO)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	50
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

90143 Series

2.54mm Pitch C-Grid III Modular Crimp Housing, Dual Row, 4 Polarizing Buttons, 60 Circuits, Black

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Color	Number of Rows	Mounting Type	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Note	Contact Type	Contact Termination
Molex 0901430040	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Black	2	Free Hanging (In-Line)	Receptacle	40	2.54 mm	0.1 in	0.1 in	2.54 mm	Contacts Not Included	Female Socket	Crimp
Molex 0901430006	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Black	2	Free Hanging (In-Line)	Receptacle	6	2.54 mm	0.1 in	0.1 in	2.54 mm	Contacts Not Included	Female Socket	Crimp
Molex 0901430004	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Black	2	Free Hanging (In-Line)	Receptacle	4	2.54 mm	0.1 in	0.1 in	2.54 mm	Contacts Not Included	Female Socket	Crimp
Molex 0901430050	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Black	2	Free Hanging (In-Line)	Receptacle	50	2.54 mm	0.1 in	0.1 in	2.54 mm	Contacts Not Included	Female Socket	Crimp
Molex 901430022
Molex 0901430026	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Black	2	Free Hanging (In-Line)	Receptacle	26	2.54 mm	0.1 in	0.1 in	2.54 mm	Contacts Not Included	Female Socket	Crimp
Molex 0901430034	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Black	2	Free Hanging (In-Line)	Receptacle	34	2.54 mm	0.1 in	0.1 in	2.54 mm	Contacts Not Included	Female Socket	Crimp
Molex 0901430012	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Black	2	Free Hanging (In-Line)	Receptacle	12	2.54 mm	0.1 in	0.1 in	2.54 mm	Contacts Not Included	Female Socket	Crimp
Molex 0901430064	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Black	2	Free Hanging (In-Line)	Receptacle	64	2.54 mm	0.1 in	0.1 in	2.54 mm	Contacts Not Included	Female Socket	Crimp
Molex 0901430014	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Black	2	Free Hanging (In-Line)	Receptacle	14	2.54 mm	0.1 in	0.1 in	2.54 mm	Contacts Not Included	Female Socket	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.14
		10	$ 1.62
		25	$ 1.46
		50	$ 1.36
		100	$ 1.27
		250	$ 1.17
		500	$ 1.10
		1000	$ 1.04
		2500	$ 0.97

Description

General part information

90143 Series

2.54mm Pitch C-Grid III Modular Crimp Housing, Dual Row, 4 Polarizing Buttons, 60 Circuits, Black
