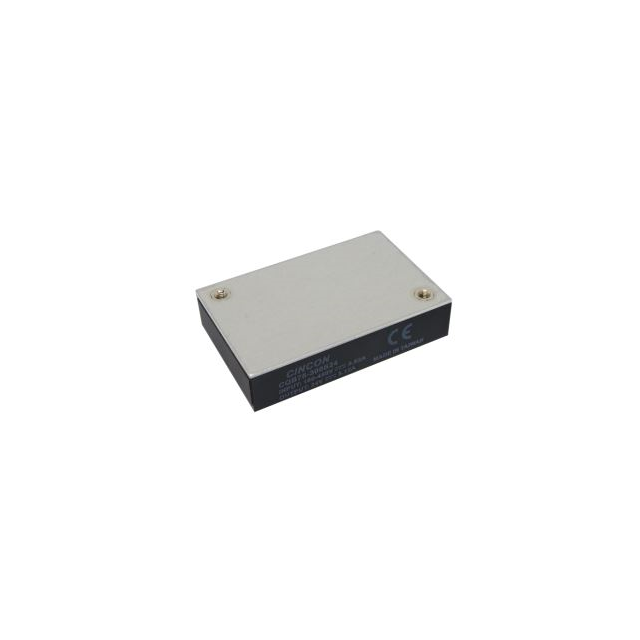

CQB75-300S12N
ActiveCincon Electronics Co. LTD
DCDC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CQB75-300S12N
ActiveCincon Electronics Co. LTD
DCDC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CQB75-300S12N |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 6.25 A |
| Efficiency | 88 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Standard Number | 62368-1 |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 450 V |
| Voltage - Input (Min) [Min] | 180 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
CQB75 Series
| Part | Mounting Type | Number of Outputs | Approval Agency | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Control Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Standard Number | Type | Applications | Current - Output (Max) [Max] | Features | Voltage - Isolation | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cincon Electronics Co. LTD | Through Hole | 1 | CE cURus | 18 V | 75 V | 75 W | -40 °C | 100 °C | 86 % | Active High Enable | 57.9 mm | 2.28 in | 1.45 in | 12.7 mm | 36.8 mm | 0.5 in | 12 V | 60950-1 | Isolated Module | ITE (Commercial) | 6.25 A | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Module | |
Cincon Electronics Co. LTD | Through Hole | 1 | CE | 180 V | 450 V | 75 W | -40 °C | 105 C | 89 % | Active High Enable | 57.9 mm | 2.28 in | 1.45 in | 12.7 mm | 36.8 mm | 0.5 in | 48 V | 62368-1 | Isolated Module | ITE (Commercial) | 1.56 A | 3000 V | Quarter Brick | Quarter Brick | |
Cincon Electronics Co. LTD | Through Hole | 1 | CE cURus | 9 V | 36 V | 60 W | -40 °C | 100 °C | 84 % | Active High Enable | 57.9 mm | 2.28 in | 1.45 in | 12.7 mm | 36.8 mm | 0.5 in | 5 V | 60950-1 | Isolated Module | ITE (Commercial) | 12 A | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Module | |
Cincon Electronics Co. LTD | Through Hole | 1 | CE | 180 V | 450 V | 75 W | -40 °C | 105 C | Active High Enable | 57.9 mm | 2.28 in | 1.45 in | 12.7 mm | 36.8 mm | 0.5 in | 5 V | 62368-1 | Isolated Module | ITE (Commercial) | 15 A | 3000 V | Quarter Brick | Quarter Brick | ||
Cincon Electronics Co. LTD | Through Hole | 1 | CE cURus | 18 V | 75 V | 75 W | -40 °C | 100 °C | 87 % | Active High Enable | 57.9 mm | 2.28 in | 1.45 in | 12.7 mm | 36.8 mm | 0.5 in | 24 V | 60950-1 | Isolated Module | ITE (Commercial) | 3.12 A | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Module | |
Cincon Electronics Co. LTD | Through Hole | 1 | CE | 180 V | 450 V | 75 W | -40 °C | 105 C | 90 % | Active Low Enable | 57.9 mm | 2.28 in | 1.45 in | 12.7 mm | 36.8 mm | 0.5 in | 24 V | 62368-1 | Isolated Module | ITE (Commercial) | 3.12 A | 3000 V | Quarter Brick | Quarter Brick | |
Cincon Electronics Co. LTD | Chassis Mount | 1 | CE | 180 V | 450 V | 75 W | -40 °C | 105 C | 90 % | 116.8 mm | 4.6 " | 2.4 " | 31.4 mm | 61 mm | 1.24 " | 24 V | 62368-1 | Open Frame | ITE (Commercial) | 3.12 A | 3000 V | ||||
Cincon Electronics Co. LTD | Through Hole | 1 | CE cURus | 18 V | 75 V | 75 W | -40 °C | 100 °C | 87 % | Active Low Enable | 57.9 mm | 2.28 in | 1.45 in | 12.7 mm | 36.8 mm | 0.5 in | 15 V | 60950-1 | Isolated Module | ITE (Commercial) | 5 A | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Module | |
Cincon Electronics Co. LTD | Through Hole | 1 | CE | 180 V | 450 V | 75 W | -40 °C | 105 C | 88 % | Active Low Enable | 57.9 mm | 2.28 in | 1.45 in | 12.7 mm | 36.8 mm | 0.5 in | 12 V | 62368-1 | Isolated Module | ITE (Commercial) | 6.25 A | 3000 V | Quarter Brick | Quarter Brick | |
Cincon Electronics Co. LTD | Through Hole | 1 | CE cURus | 18 V | 75 V | 75 W | -40 °C | 100 °C | 86 % | Active Low Enable | 57.9 mm | 2.28 in | 1.45 in | 12.7 mm | 36.8 mm | 0.5 in | 12 V | 60950-1 | Isolated Module | ITE (Commercial) | 6.25 A | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 100.00 | |
| 5 | $ 98.00 | |||
| 10 | $ 95.06 | |||
| 25 | $ 91.26 | |||
| 50 | $ 86.69 | |||
| 100 | $ 84.14 | |||
Description
General part information
CQB75 Series
Isolated Module DC DC Converter 1 Output 12V 6.25A 180V - 450V Input
