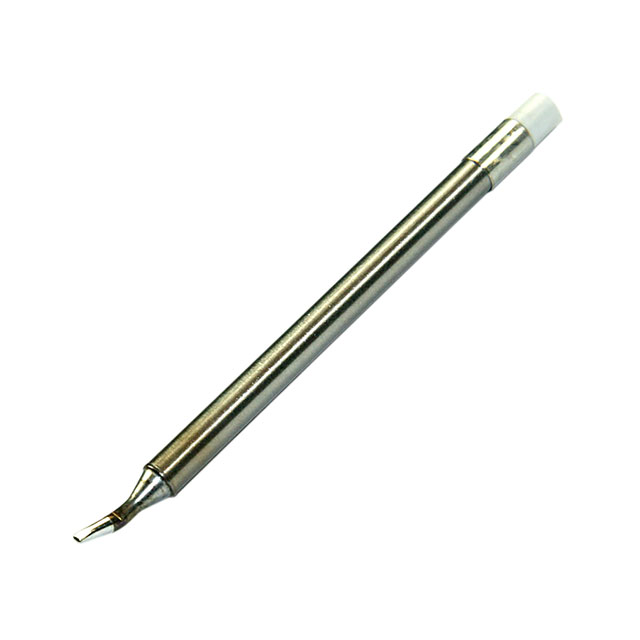

T31-03JD14

Active

American Hakko Products, Inc.

TIP,BENT CHISEL,1.4MM/30X12.4MM,

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

TIP,BENT CHISEL,1.4MM/30X12.4MM,

Technical Specifications

Parameters and characteristics for this part

Specification	T31-03JD14

Diameter	0.25 mm
Diameter	0.01 in
For Use With/Related Products	FX-100, FX1001
Height [z]	0.08 in
Height [z]	2.03 mm
Temperature Range	350 °C
Tip Shape	Chisel, Bent 30°
Tip Type	Soldering
Width [x]	0.06 in
Width [x]	1.52 mm

Part	Tip Shape	Temperature Range	Tip Type	Height [z]	Height [z]	For Use With/Related Products	Width [x]	Width [x]	Length	Length	Length [x]	Length [x]	Width [y]	Width	Temperature Range	Diameter [diameter]	Diameter [diameter]	Width [y]	Length [x]	Diameter	Diameter
American Hakko Products, Inc. T31-03D52	Chisel	350 °C	Soldering	0.03 in	0.76 mm	FX-100 FX1001	5.08 mm	0.2 in	7.87 mm	0.31 in
American Hakko Products, Inc. T31-01BC1	Bevel 60°	842 °F	Soldering	0.05 "	1.28 mm	FX-100 FX1001					0.559 in	14.2 mm	0.04 in	1.02 mm	450 °C
American Hakko Products, Inc. T31-03BL	Conical	350 °C	Soldering			FX-100 FX1001			11.94 mm	0.47 in						0.2 mm	0.008 in
American Hakko Products, Inc. T31-02D08	Chisel	400 °C	Soldering	0.02 in	0.5 mm	FX-100 FX1001			8.89 mm	0.35 "			0.03 in					0.76 mm
American Hakko Products, Inc. T31-02SBL	Conical	400 °C	Soldering			FX-100 FX1001					13.72 mm					0.2 mm	0.008 in		0.54 in
American Hakko Products, Inc. T31-00D08	Chisel	896 °F	Soldering	0.02 in	0.5 mm	FX-100 FX1001			8.89 mm	0.35 "			0.03 in		480 °C			0.76 mm
American Hakko Products, Inc. T31-03D16	Chisel	350 °C	Soldering	0.02 in	0.5 mm	FX-100 FX1001	1.52 mm	0.06 in	9.91 mm	0.39 "
American Hakko Products, Inc. T31-00BC1	Bevel 60°	896 °F	Soldering	0.05 "	1.28 mm	FX-100 FX1001					14.22 mm		0.04 in	1.02 mm	480 °C				0.56 in
American Hakko Products, Inc. T31-03JD14	Chisel Bent 30°	350 °C	Soldering	0.08 in	2.03 mm	FX-100 FX1001	1.52 mm	0.06 in												0.25 mm	0.01 in
American Hakko Products, Inc. T31-00D16	Chisel	896 °F	Soldering	0.02 in	0.5 mm	FX-100 FX1001	1.52 mm	0.06 in	9.91 mm	0.39 "					480 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 29.13

General part information

TIP,BENT CHISEL,1.4MM/30X12.4MM,
