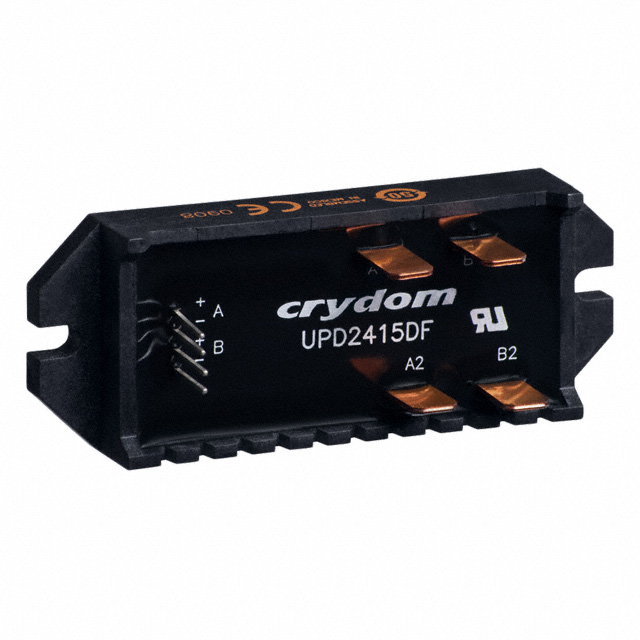

UPD2415DF

Active

Sensata-Crydom

SSR RELAY SPST-NO 15A 24-280V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 15A 24-280V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Output Type	Mounting Type	Supplier Device Package	Termination Style	Load Current	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Circuit
Sensata-Crydom UPD2415D	-40 °C	80 C	6-SIP	AC Zero Cross	Through Hole	6-SIP	PC Pin	15 A	CE cURus	24 V	280 V	15 V	3 V	SPST-NO (1 Form A) x 2
Sensata-Crydom UPD2415DF	-40 °C	80 C	Module	AC Zero Cross	Chassis Mount		Quick Connect - 0.250" (6.3mm)	15 A	CE cURus	24 V	280 V	15 V	3 V	SPST-NO (1 Form A) x 2
Sensata-Crydom UPD2415D-10	-40 °C	80 C	6-SIP	AC	Through Hole	6-SIP	PC Pin	15 A	CE cURus	24 V	280 V	15 V	3 V	SPST-NO (1 Form A) x 2
Sensata-Crydom UPD2415TP-10	-40 °C	80 C	6-SIP	AC	Through Hole	6-SIP	PC Pin	15 A	CE cURus	24 V	280 V	8 VDC	4.5 V	3PST-NO (3 Form A)
Sensata-Crydom UPD2415TPF	-40 °C	80 C	Module	AC Zero Cross	Chassis Mount		Quick Connect - 0.250" (6.3mm)	15 A	CE cURus	24 V	280 V	8 VDC	4.5 V	3PST-NO (3 Form A)
Sensata-Crydom UPD2415-10	-40 °C	80 C	6-SIP	AC	Through Hole	6-SIP	PC Pin	15 A	CE cURus	24 V	280 V	32 V	3 V
Sensata-Crydom UPD2415F	-40 °C	80 C	Module	AC Zero Cross	Chassis Mount		Quick Connect - 0.250" (6.3mm)	15 A	CE cURus	24 V	280 V	32 V	3 V
Sensata-Crydom UPD2415TPF-10	-40 °C	80 C	Module	AC	Chassis Mount		Quick Connect - 0.250" (6.3mm)	15 A	CE cURus	24 V	280 V	8 VDC	4.5 V	3PST-NO (3 Form A)
Sensata-Crydom UPD2415F-10	-40 °C	80 C	Module	AC	Chassis Mount		Quick Connect - 0.250" (6.3mm)	15 A	CE cURus	24 V	280 V	32 V	3 V
