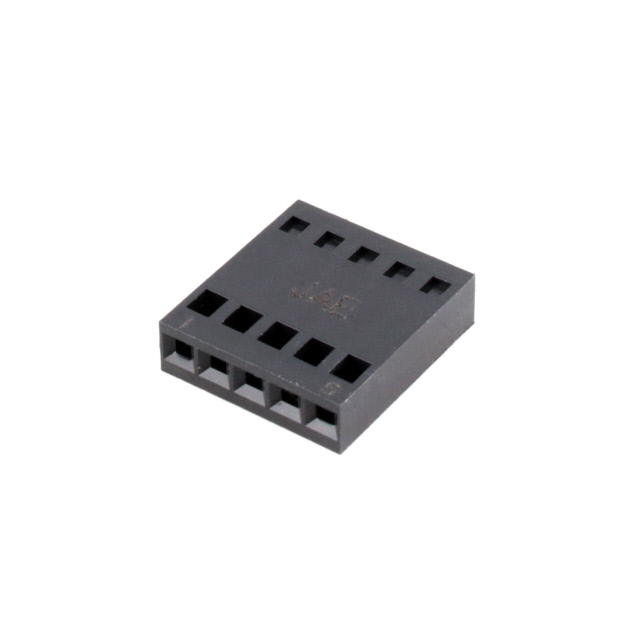

PS-5SD-S4C2

Active

JAE Electronics

CONN RCPT HSG 5POS 2.54MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT HSG 5POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	PS-5SD-S4C2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Insulation Material	Current Rating (Amps)	Contact Finish - Post	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Contact Material	Termination	Contact Finish - Mating	Fastening Type	Contact Type	Insulation Color	Mounting Type	Contact Finish Thickness - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Pitch [x]	Pitch [x]	Contact Termination	Color	Note
JAE Electronics PS-5SD-S4TS1-1	9.5 mm	0.374 in	UL94 V-0	1	Polybutylene Terephthalate (PBT)	3 A	Gold	All	0.1 in	2.54 mm	85 °C	-55 °C	2.92 mm	0.115 in	Copper Alloy	Solder	Gold	Push-Pull	Female Socket	Black	Through Hole	Flash	Receptacle	0.099 µm	3.9 µin	Square
JAE Electronics PS-5SD-S4C2				1	Polybutylene Terephthalate (PBT)														Female Socket		Free Hanging (In-Line)		Receptacle				2.54 mm	0.1 in	Crimp	Black	Contacts Not Included
JAE Electronics PS-5SD-S4T1-1	3.75 mm	0.148 in	UL94 V-0	1	Polybutylene Terephthalate (PBT)	3 A	Gold	All	0.1 in	2.54 mm	85 °C	-55 °C	2.92 mm	0.115 in	Copper Alloy	Solder	Gold	Push-Pull	Female Socket	Black	Through Hole Right Angle	Flash	Receptacle	0.099 µm	3.9 µin	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
