S12MC7-P16MFG0-9270
ActiveODU

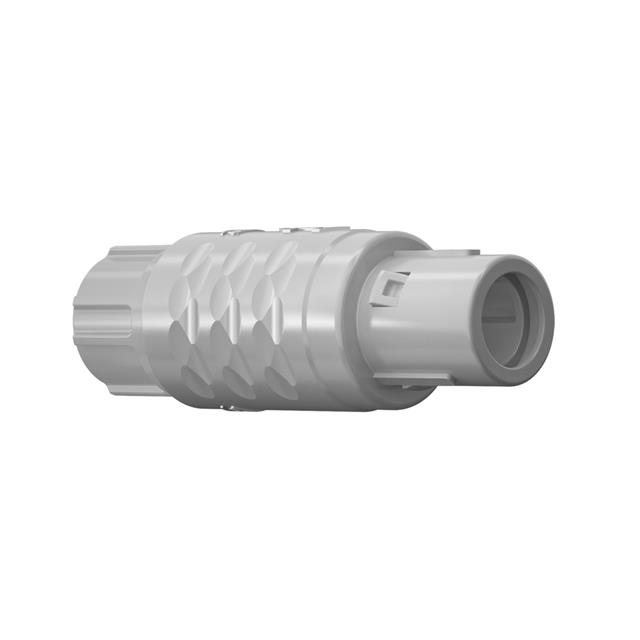

ODU MEDI-SNAP PLUG, STY 1, SZ 2,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S12MC7-P16MFG0-9270 |
|---|---|
| Applications | Testing Equipment, Medical, Industrial, Measurement |
| Backshell Material, Plating | Polysulfone (PSU) |
| Cable Opening [Max] [diameter] | 0.362 in |
| Cable Opening [Max] [diameter] | 9.2 mm |
| Cable Opening [Min] [diameter] | 7.4 mm |
| Cable Opening [Min] [diameter] | 0.291 in |
| Color | Gray |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | C |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | 2 |
| Shielding | Unshielded |
| Voltage Rating | 25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.54 | |
Description
General part information
S12MC7-P Series
16 Position Circular Connector Plug, Male Pins Solder Cup
