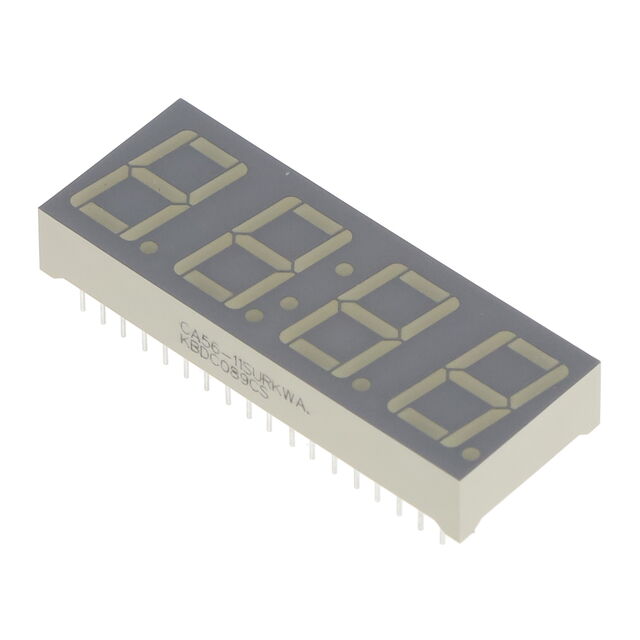

CA56-11SURKWA

Active

Kingbright

DISP 7SEG 0.56" QUAD RED 36DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CA56-11SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment Clock
Millicandela Rating	72 mcd
Number of Characters	4
Package / Case	36-DIP
Package / Case [x]	15.24 mm
Package / Case [x]	0.6 in
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	50.3 mm
Size / Dimension [y]	1.98 in
Size / Dimension [z]	0.319 in
Size / Dimension [z]	8.1 mm
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	645 nm

CA56-11 Series

Part	Number of Characters	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Wavelength - Peak	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Color	Display Type	Power Dissipation (Max) [Max]	Package / Case [x]	Package / Case [x]
Kingbright CA56-11SRWA	4	40 mcd	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	660 nm	Common Anode	0.56 in	14.22 mm	20 mA	0.6 in	36-DIP Module	15.24 mm	1.85 V	Red	7-Segment Clock	75 mw
Kingbright CA56-11SYKWA	4	120 mcd	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	590 nm	Common Anode	0.56 in	14.22 mm	20 mA		36-DIP		2 V	Yellow	7-Segment Clock	75 mw	15.24 mm	0.6 in
Kingbright CA56-11SURKWA	4	72 mcd	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	645 nm	Common Anode	0.56 in	14.22 mm	20 mA		36-DIP		1.95 V	Red	7-Segment Clock	75 mw	15.24 mm	0.6 in
Kingbright CA56-11EWA	4	5.8 mcd	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	627 nm	Common Anode	0.56 in	14.22 mm	20 mA	0.6 in	36-DIP Module	15.24 mm	2 V	Red	7-Segment Clock	75 mw
Kingbright CA56-11CGKWA	4	35 mcd	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm		Common Anode	0.56 in	14.22 mm	20 mA		36-DIP		2.1 V	Green	7-Segment Clock	75 mw	15.24 mm	0.6 in
Kingbright CA56-11GWA	4	11 mcd	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	565 nm	Common Anode	0.56 in	14.22 mm	20 mA	0.6 in	36-DIP Module	15.24 mm	2.2 V	Green	7-Segment Clock	62.5 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.31
		10	$ 5.17
		100	$ 4.23
		500	$ 3.57
		1000	$ 3.27
		2000	$ 3.14

Description

General part information

CA56-11 Series

Display Modules - LED Character and Numeric Red 7-Segment Clock 4 Character Common Anode 1.95V 20mA 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) 36-DIP (0.600", 15.24mm)
