LFV18-8Q

Active

3M (TC)

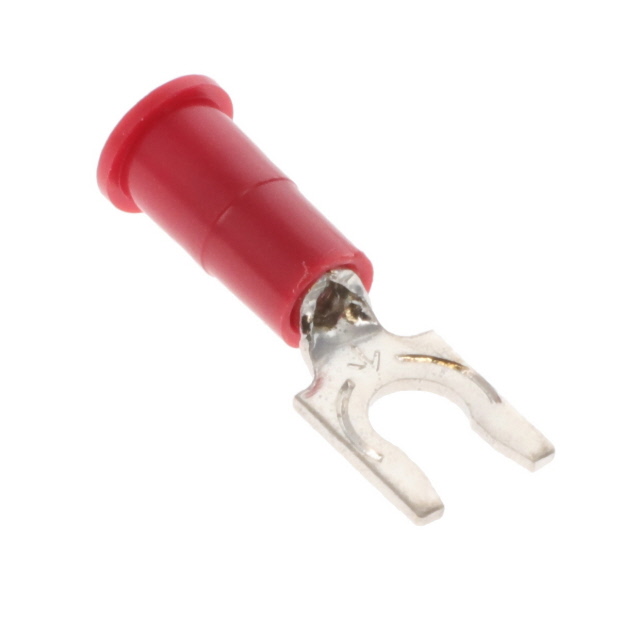

LOCKING FORK VINYL INSULATED HIGHLANDBAG 25/BAG

Search across all available documentation for this part.

Active

3M (TC)

LOCKING FORK VINYL INSULATED HIGHLANDBAG 25/BAG

Technical Specifications

Parameters and characteristics for this part

Specification	LFV18-8Q

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	0.88 in
Length - Overall [x]	22.35 mm
Length - Ring Center to Termination [x]	0.25 in
Length - Ring Center to Termination [x]	6.35 mm
Length - Termination [x]	0.45 in
Length - Termination [x]	11.43 mm
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Color	Insulation Diameter	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Material - Insulation	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Features	Contact Finish	Mounting Type	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation	Termination	Stud/Tab Size	Contact Material	Stud/Tab Size
3M (TC) LFV18-6Q	Red	3.68 mm	0.145 "	0.88 in	22.35 mm	Vinyl	Snap Spring	22 AWG	17.5 AWG	Butted Seam	Tin	Free Hanging (In-Line)	0.45 in	11.43 mm	0.27 in	6.86 mm	0.25 in	6.35 mm	Insulated	Crimp	6 Stud	Copper ETP
3M (TC) LFV18-8Q	Red	3.68 mm	0.145 "	0.88 in	22.35 mm	Vinyl	Snap Spring	22 AWG	17.5 AWG	Butted Seam	Tin	Free Hanging (In-Line)	0.45 in	11.43 mm			0.25 in	6.35 mm	Insulated	Crimp		Copper ETP	8 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG
